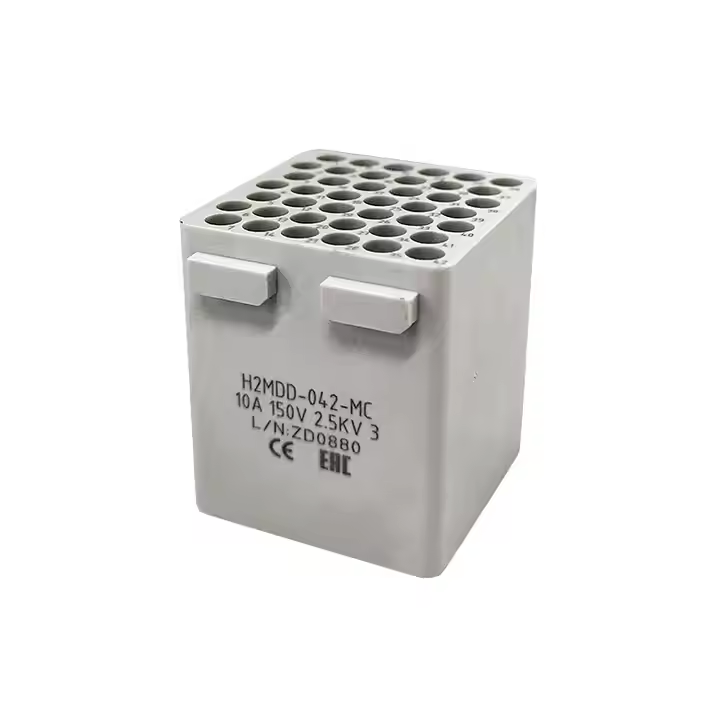

The H2MDD-042-MC crimp module (HM series) integrates 42-pin connectivity for 0.14-2.5mm² wires, rated 10A/150V with ≤3mΩ resistance. UL 94 V0-certified and ISO9001/CE-compliant, it supports high-density signal/power hybrid solutions in wind energy and industrial automation.
Using with Female insert H2MDD-042-FC
| Termination Method to Wire & Cable | Crimp Terminal |
| Order No. | 129 042 010 0001 |
| Electrical Data Acc.to | DIN EN60664 EN61984 |
| Body Material | Polycarbonate |
| Pins | 42 |
| Electrical Data Acc. To EN61 984 | |
| Rated Current | 10A |
| Rated Voltages | 150V |
| Rated Impulse Voltages | 2.5kv |
| Pollution degree | 3 |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Applications | Wind power generation, Power Systems, Automation, Renewable Energy, Energy Distribution, Construction machinery,etc. |
| OEM | Provided |
| Material | Copper Alloy |
| Surface | Hard-silver Plated Hard-gold Plated |
| Contact Resistance | ≤3mΩ |
| Crimp Terminal | |
| mm² | 0.14-2.5mm² |
| AWG | 26-14 |
Han HMDS-025 Crimp Module can be combined with a hinged frame and other modules.
