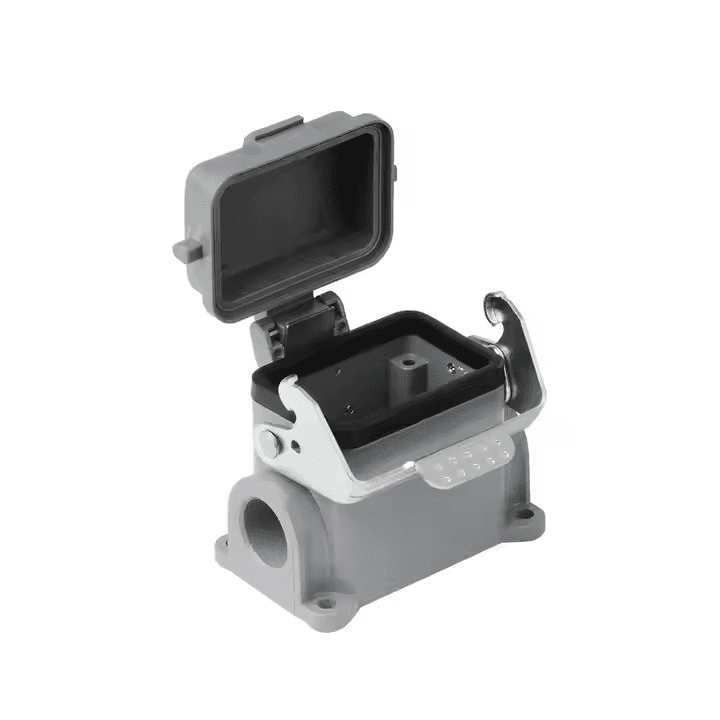

This robust low-metal lower housing features a side-entry/surface-mounted design with single-buckle locking and a protective cover. Compatible with PG16/PG13.5/M20 threads, it ensures secure installation for inserts requiring high electrical performance. It is ideal for simplified single-line connections in demanding industrial environments.
| Termination Method to Wire & Cable | Screw Terminal, Spring Terminal, Crimp Terminal |
| Material | Aluminum Alloy, Die Cast |
| Rated Voltages | 400/500V |
| Rated Current | 16A |
| Pins | 6 Pins |
| Rated impulse voltage | 6kV |
| Rated voltage acc. to UL/CSA | 600V |
| Pollution degree | 3 |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Specification | DNEN60664,DNEN61984 |
| Certificate | ISO9001/CE |
| Mechanical Stability | High |
| Applications | Automotive, Control engineering Signal/Machinery Equipment/Aviation/High-speed Rail, Energy Distribution, etc. |
| OEM | Provided |
| Interlocking element | |
| —Interlocking method | Metal elastic pressing |
| —material | stainless steel+TPR |
| Sealing element | NBR |
| Protection level | IP65 |
| Thread | PG16, PG13.5, M20 |
Suitable Inserts: HE-006-M, HE-006-F
