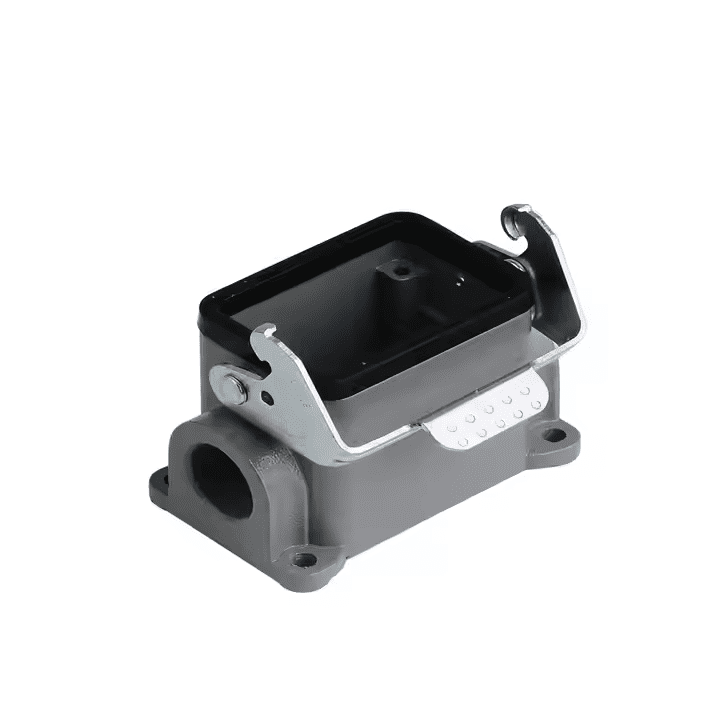

Designed for surface mounting, this low-profile housing with side entry and single-buckle locking supports single-line connections. As the smallest in the H-B series, it optimizes space while ensuring compatibility with inserts demanding high electrical performance. Ideal for compact industrial systems.
H6B-SGR-LB Heavy Duty Connector Hood
| Termination Method to Wire & Cable | Screw Terminal, Spring Terminal, Crimp Terminal |
| Material | Cast aluminum |
| Rated Voltages | 400/500V |
| Rated Current | 16A |
| Pins | 6 Pins |
| Rated impulse voltage | 6kV |
| Rated voltage acc. to UL/CSA | 600V |
| Pollution degree | 3 |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Specification | DNEN60664,DNEN61984 |
| Certificate | ISO9001/CE |
| Mechanical Stability | High |
| Applications | Energy Distribution, Automotive, Control engineering, Signal, Machinery Equipment, Plant engineering, Plastics industry, etc. |
| OEM | Provided |
| Interlocking element | |
| —Interlocking method | Metal elastic pressing |
| —material | stainless steel+TPR |
| Sealing element | NBR |
| Protection level | IP65 |
| Thread | PG13.5, PG16, M20 |
Combination
Suitable Inserts: HE-006-M, HE-006-F
