HD-025-FC

HD-025-FC heavy duty connector inserts

HD-025-FC

Category HD/HDD-High Density Connector Tags 10A, 25pins, HD

The HD-025-FC 25-pin male connector features crimp terminals, polycarbonate housing, and gold/silver-plated contacts. Rated for 10A/250V with UL 94 V0 compliance, it serves wind power, photovoltaic systems, and energy distribution. Compatible with HD-025-MC inserts and H16A housings.

Additional information

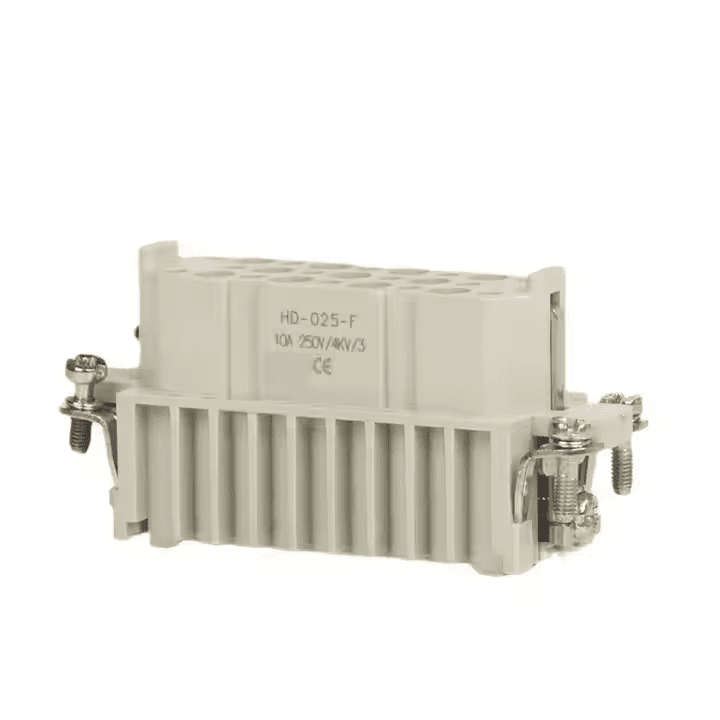

HD-025-FC 25pins Female Crimp termination Connector

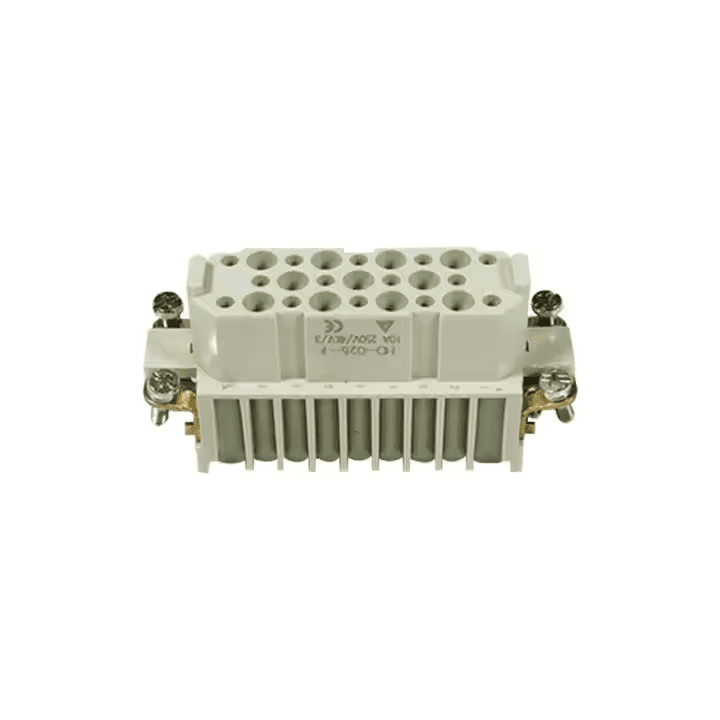

25 pins solution, with male inserts HD-025-MC

Termination Method to Wire & Cable	Crimp Terminal
Order No.	09210253001
Body Material	Polycarbonate
Rated Voltages	250V
Rated Current	10A
Pins	25 Pins
Rated impulse voltage	4kV
Rated voltage acc. to UL/CSA	600V
Pollution degree	3
Limiting temperatures	-40℃…+125℃
Insulation resistance	≥1010Ω
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Certificate	ISO9001/CE
Applications	Wind power generation, Photovoltaic Industry, Construction machinery, Renewable Energy, Energy Distribution, etc.
OEM	Provided

Contacts

Material	Copper Alloy
Surface	Hard-gold Plated Hard-silver Plated
Contact Resistance	≤3mΩ
Wire Gauge	0.14-2.5mm^2
AWG	26-14
Tightening Torque	7.5Nm

HD 25 pin heavy duty connector Suitable Shell: H16A Hoods and Housings

H16A Hoods and Housing Features:

Seal Material: NBR
The H16A hoods and housing also have high construction design; the Cable entry numbers also
IP65 tightness ratings and IEC 60529 standards
