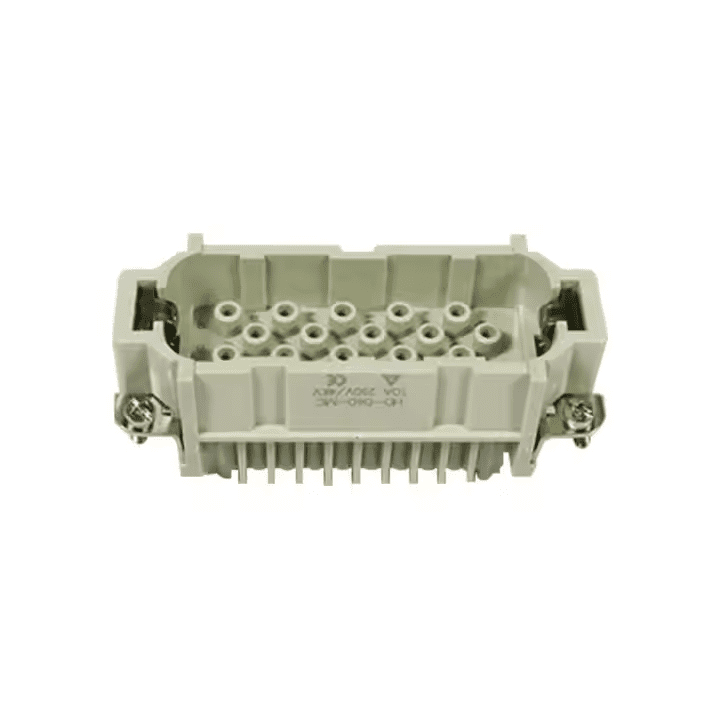

The HD-040-MC ultra-high-density connector offers 40-pin crimp termination with polycarbonate housing and gold/silver-plated contacts. Rated 10A/250V, UL 94 V0-certified, and compatible with H16B housings, it excels in renewable energy, photovoltaics, and heavy machinery.
40 pins solution, with female inserts HD-040-FC
| Termination Method to Wire & Cable | Crimp Terminal |
| Order No. | 09210403001 |
| Body Material | Polycarbonate |
| Rated Voltages | 250V |
| Rated Current | 10A |
| Pins | 40 Pins |
| Rated impulse voltage | 4kV |
| Rated voltage acc. to UL/CSA | 600V |
| Pollution degree | 3 |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Applications | Construction machinery, Renewable Energy, Photovoltaic Industry, Wind power generation, Energy Distribution, etc. |
| OEM | Provided |
| Material | Copper Alloy |
| Surface | Hard-gold Plated
Hard-silver Plated |
| Contact Resistance | ≤3mΩ |
| Wire Gauge | 0.14-2.5mm^2 |
| AWG | 26-14 |
| Tightening Torque | 7.5Nm |
H16B Hoods and Housing Features:
