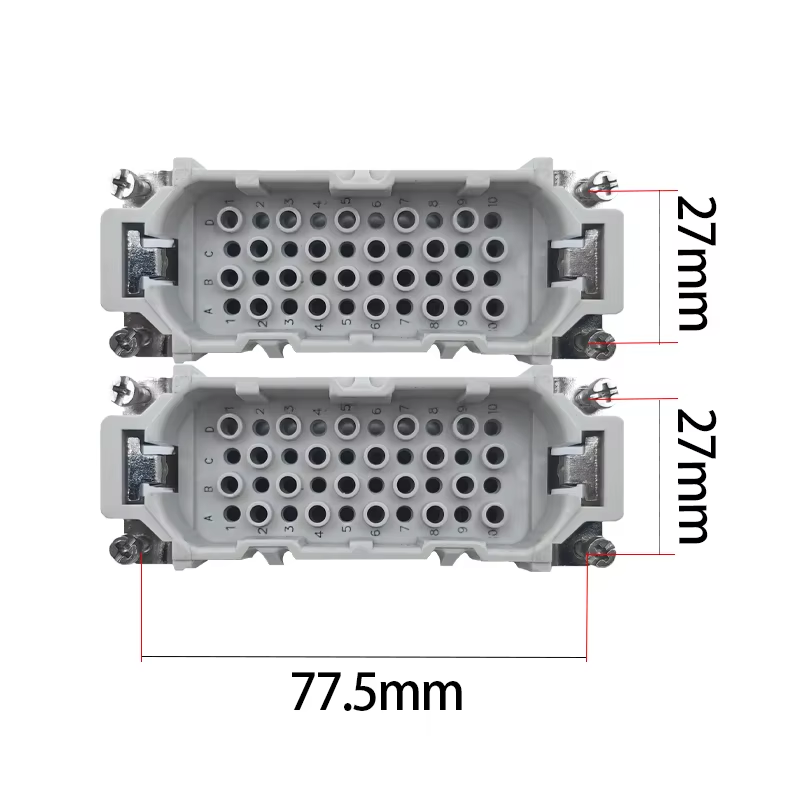

The HD-080-MC 80-pin connector insert integrates two HD-040-MC units, offering high-density crimp termination and gold/silver-plated contacts. With UL 94 V0 flame resistance (-40℃–125℃ range) and 4kV impulse protection, it meets ISO9001/CE standards for rail and energy systems and etc.
80 pins solution, with female inserts HD-080-FC， consisting of two HD-040-MC

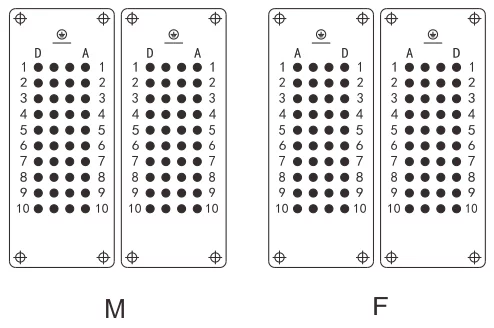

HD-040-MC(1-40), HD-064-MC(41-80)
| Termination Method to Wire & Cable | Crimp Terminal |
| Order No. | 09210403001 |
| Body Material | Polycarbonate |
| Rated Voltages | 250V |
| Rated Current | 10A |
| Pins | 80 Pins |
| Rated impulse voltage | 4kV |
| Rated voltage acc. to UL/CSA | 600V |
| Pollution degree | 3 |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Applications | Construction machinery, Renewable Energy, rail transit, hot runners, Engineering Equipment, etc. |
| OEM | Provided |
| Material | Copper Alloy |
| Surface | Hard-gold Plated
Hard-silver Plated |
| Contact Resistance | ≤3mΩ |
| Wire Gauge | 0.14-2.5mm^2 |
| AWG | 26-14 |
| Tightening Torque | 7.5Nm |

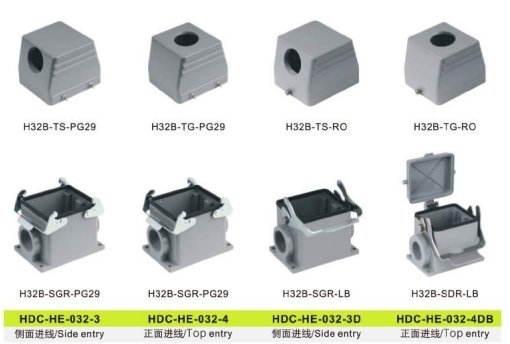

H32B Hoods and Housing Features:
