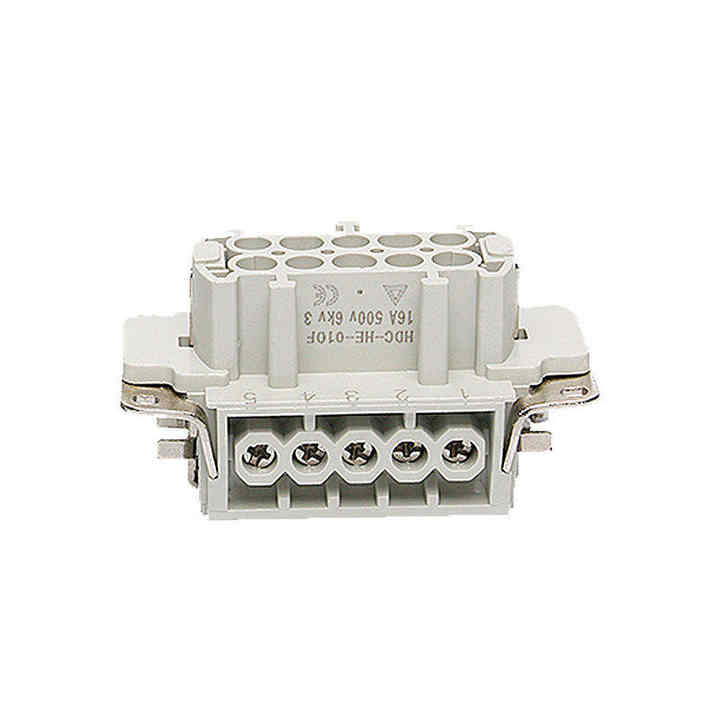

HE-010-F 10pins heavy duty connector

HE-010-F Han E size 10B heavy duty connector,equivalent to harting 09 33 010 2701.

Features

• Pin Nos:10 pins,with screw terminal type.
• 16A,500v,with IP65 ratings
• Setted in Aluminium Hoods and Housing with rubber gasket.
• With both single leverage and double leverage

Male inserts HE-010-M

HE-010-F are combined with HE-010M,which is equivalent to harting 09 33 010 2601.

H10B hoods and Housing

HE-010-M are fitted with H10B hoods and Housing,the hoods and housing are of high tensile zinc aluminium alloy,with NBR rubber sealed,to reach the IP ratings IP65 at least.H10B hoods and housing with different designs in constructions,lock leverage system,and cable entry sides.
