HE-016-F

HE-016-F

Category HE/Standard Connector Tags 16A, 16pins, HE

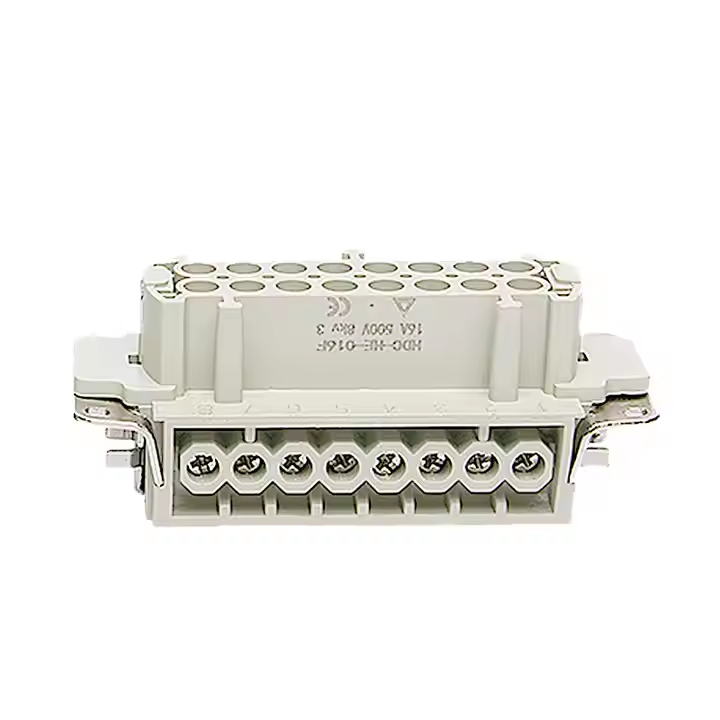

HE-016-F, full name HE-16-F 16 pins heavy duty connector female inserts, with polycarbonate cover and silver plated or gold plated copper contact.

heavy duty connector catalog

Additional information

Body Material	Polycarbonate
Voltages	500V
Current	16A
Pins	16Pins

HE-016-F Female Insert

HE-016-F Han E size 16B heavy duty connector, equivalent to harting 09330162701.

Termination Method to Wire & Cable : Screw Terminal
Rated impulse voltage: 6kV
Pollution degree：3
Rated voltage acc. to UL/CSA：600V
Insulation resistance ≥1010Ω
Limiting temperatures：-40℃…+125℃
Flammability acc. to UL 94：V0
Mechanical working life(mating cycles) ≥500
Certificate: ISO9001 CE

Sets Hoods&Housing

Suitable Shell: H16B Hood and Housing

H16B Hoods&Housing

H16B hoods and housing features:

1.Thread M25 PG21 PG29 M32

2.Cable arrange: Side entry or Top entry.

3.Degree of protection acc.toDIN40 050 IP65
