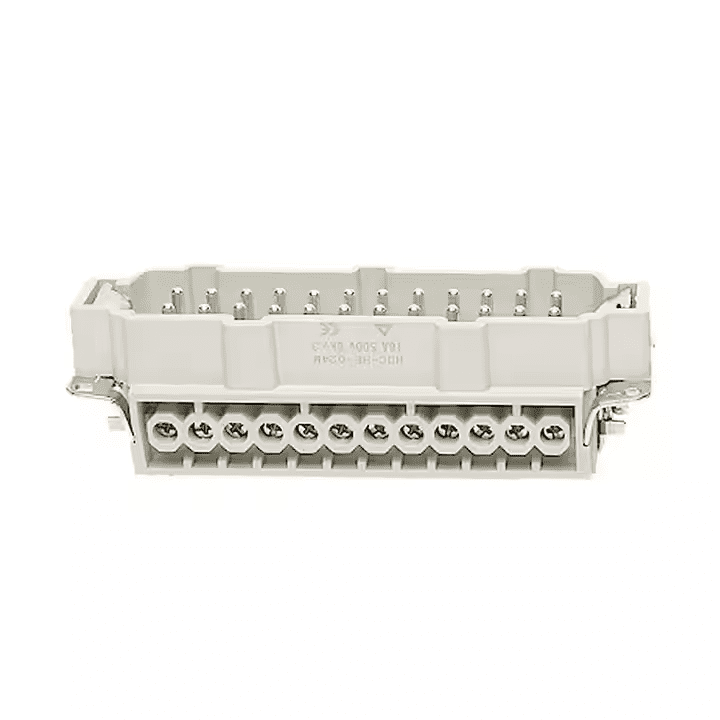

The hdc he 024m offers 24-pin configuration with 16A/500V rating, featuring polycarbonate housing and gold/silver-plated contacts. ISO9001/CE-certified, it suits machinery, renewable energy, and industrial systems. Compatible with H24B housing.
| Termination Method to Wire & Cable | Screw Terminal |
| Order No. | 09330242601 |
| Body Material | Polycarbonate |
| Rated Voltages | 500V |
| Rated Current | 16A |
| Pins | 24Pins |
| Rated impulse voltage | 6kV |
| Rated voltage acc. to UL/CSA | 600V |
| Pollution degree | 3 |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Certificate | ISO9001 CE |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Applications | Renewable Energy, Machinery, Energy Distribution, Professional Light and Sound, etc. |
| Material | Copper Alloy |
| Surface | Hard-gold Plated Hard-silver Plated |
| Contact Resistance | ≤1mΩ |
| Wire Gauge | 0.14-2.5mm^2 |
| AWG | 26-14 |
| Tightening Torque | 0.5Nm |
| Stripping length | 7.5mm |
