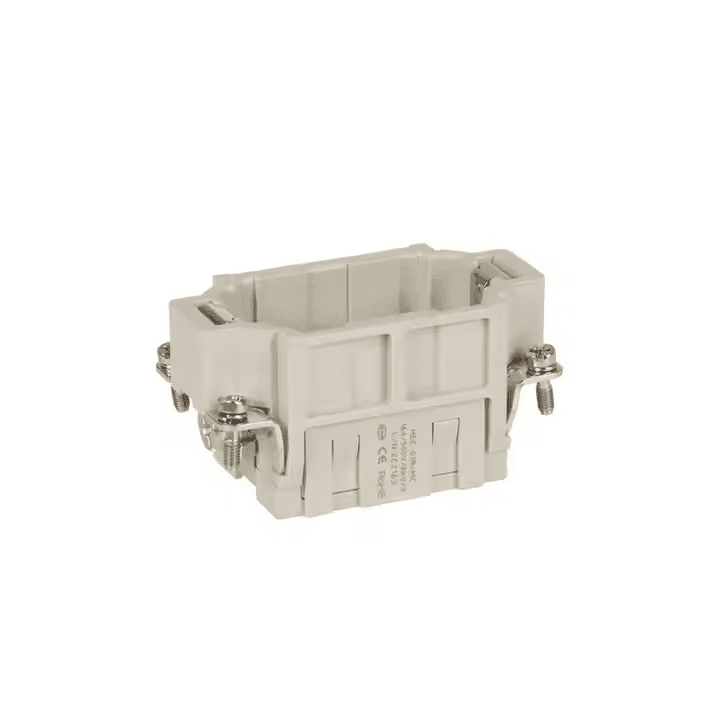

The HEE-018-MC is an 18-pin ultra-high-density male connector insert with crimp termination, rated for 16A/500V and 600V UL/CSA certification. It features a polycarbonate body, gold/silver-plated contacts, and a V0 flammability rating. It operates in -40℃ to 125℃ environments, ideal for heavy-duty applications like rail transit and renewable energy.
18 pins solution, with female inserts HEE-018-FC
| Termination Method to Wire & Cable | Crimp Terminal |
| Order No. | 09320183001 |
| Electrical Data Acc.to | DIN EN60664 EN61984 |
| Body Material | Polycarbonate |
| Rated Voltages | 500V |
| Rated Current | 16A |
| Pins | 18Pins |
| Rated impulse voltage | 6kV |
| Rated voltage acc. to UL/CSA | 600V |
| Pollution degree | 3 |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Applications | Hot runners, Rail transit, Engineering Equipment, Renewable Energy, Construction machinery, etc. |
| OEM | Provided |
| Material | Copper Alloy |
| Surface | Hard-gold Plated
Hard-silver Plated |
| Contact Resistance | ≤1mΩ |
| Wire Gauge | 0.14-4.0mm^2 |
| AWG | 26-12 |
| Tightening Torque | 7.5Nm |
H10B hoods and housing features:
