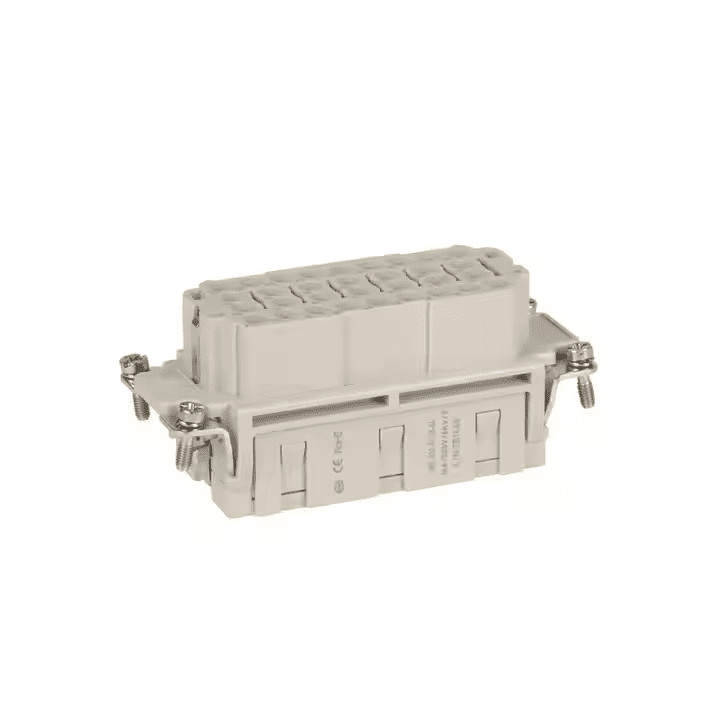

HEE-032-FC heavy duty connector insert featuring copper alloy contacts with gold/silver plating and support for 0.14-4.0mm² wires, this 32-pin connector delivers ≤1mΩ resistance and ≥500 mating cycles. Certified ISO9001/CE, it suits harsh environments like renewable energy and construction equipment.
32 pins solution, with male inserts HEE-032-MC
| Termination Method to Wire & Cable | Crimp Terminal |
| Order No. | 09320323101 |
| Electrical Data Acc.to | DIN EN60664 EN61984 |
| Body Material | Polycarbonate |
| Rated Voltages | 500V |
| Rated Current | 16A |
| Pins | 32Pins |
| Rated impulse voltage | 6kV |
| Rated voltage acc. to UL/CSA | 600V |
| Pollution degree | 3 |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Applications | Construction machinery, Wind power generation, Rail transportation, Engineering Equipment, Renewable Energy, etc. |
| OEM | Provided |
| Material | Copper Alloy |
| Surface | Hard-gold Plated
Hard-silver Plated |
| Contact Resistance | ≤1mΩ |
| Wire Gauge | 0.14-4.0mm^2 |
| AWG | 26-12 |
| Tightening Torque | 7.5Nm |
H16B hoods and housing features:
