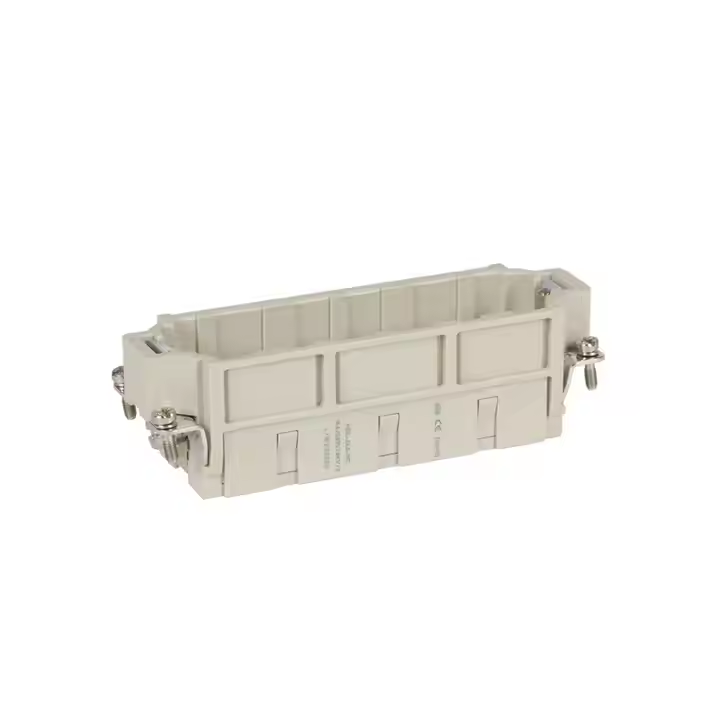

The HEE-046-MC ultra-high-density connector insert features 46-pin crimp termination with polycarbonate housing, rated for 16A/500V (UL 94 V0, ISO9001/CE). Compatible with H24B shells, it supports 0.14-4.0mm² wires and excels in wind power, rail transport, and heavy machinery.

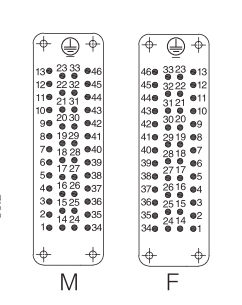

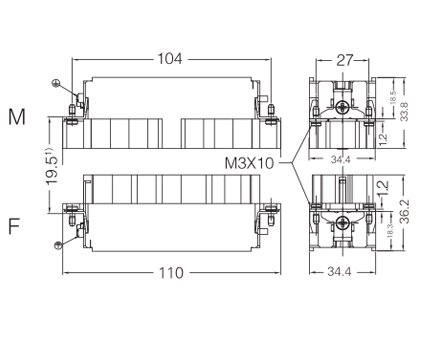

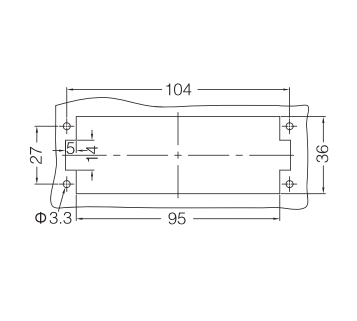

46 pins solution, with female inserts HEE-046-FC
| Termination Method to Wire & Cable | Crimp Terminal |
| Order No. | 09320463001 |
| Electrical Data Acc.to | DIN EN60664 EN61984 |
| Body Material | Polycarbonate |
| Rated Voltages | 500V |
| Rated Current | 16A |
| Pins | 46Pins |
| Rated impulse voltage | 6kV |
| Rated voltage acc. to UL/CSA | 600V |
| Pollution degree | 3 |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Applications | Wind power generation, rail transportation, Construction machinery, Engineering Equipment, Renewable Energy, etc. |
| OEM | Provided |
| Material | Copper Alloy |
| Surface | Hard-gold Plated
Hard-silver Plated |
| Contact Resistance | ≤1mΩ |
| Wire Gauge | 0.14-4.0mm^2 |
| AWG | 26-12 |
| Tightening Torque | 7.5Nm |
