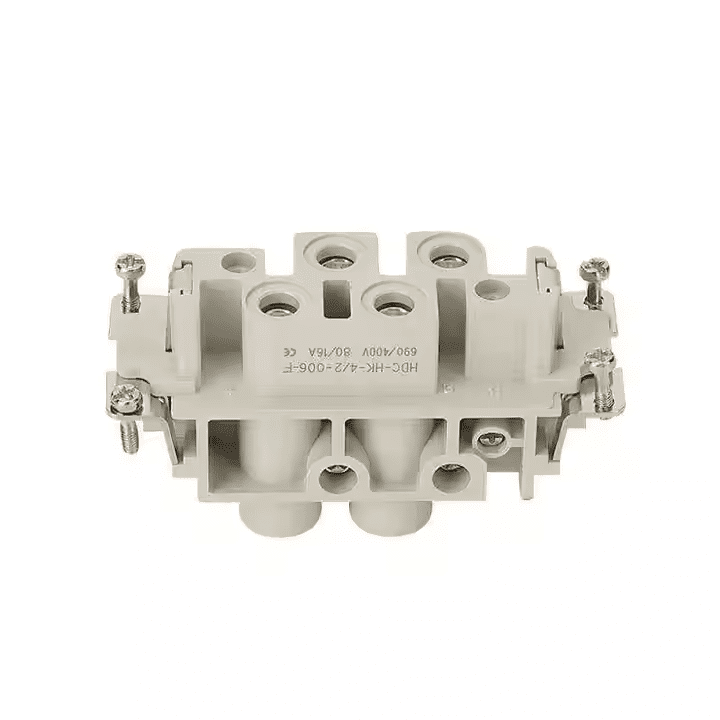

The HK-004/2-F Combination connector insert integrates 80A/830V power and 16A/400V signal areas with screw terminals. UL 94 V0-certified and ISO9001/CE-compliant, it suits H16B housings for renewable energy, automation, and power distribution systems. OEM/ODM supported.
Using with male inserts HK-004/2-M
| Termination Method to Wire & Cable | Screw Terminal |
| Order No. | 09380062701 |
| Electrical Data Acc.to | DIN EN60664 EN61984 |
| Body Material | Polycarbonate |
| Pins | 4/0, 4/2+PE |
| Power Area | |
| Rated Current | 80A |
| Rated Voltages | 830V |
| Rated impulse voltage | 8kV |
| Pollution degree | 3 |
| Pollution Degree 2 Also | 80A 1000V 8KV 2 |
| Signal Area | |
| Rated Current | 16A |
| Rated Voltages | 400V |
| Rated impulse voltage | 6kV |
| Pollution degree | 3 |
| Pollution Degree 2 Also | 16A 400/690V 6KV 2 |
| Rated voltage acc. to UL/CSA | 600/300V |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Power Area | ||||||
| Material | Copper Alloy | |||||
| Surface | Hard-silver Plated | |||||
| Contact Resistance | ≤0.3mΩ | |||||
| Screw Terminal | ||||||
| mm^2 | 1.5-6mm^2 | |||||
| AWG | 16-6 | |||||
| Tightening Torque | ||||||
| mm^2 |
1.5 |
2.5 | 4 | 6 | 10 |
16 |
| N.m |
1.2 |
2 | 3 | 3 | 3 |
3 |
| Stripping length | 14mm | |||||
| Signal Area | |
| Material | Copper Alloy |
| Surface | Hard-silver Plated |
| Contact Resistance | ≤1mΩ |
| Screw Terminal | |
| mm^2 | 0.5-2.5mm^2 |
| AWG | 20-14 |
| Tightening Torque | 0.5Nm |
| Stripping length | 7.5mm |
Applications: Power Systems, Energy Distribution, Renewable Energy, Construction machinery, Automation, etc.
