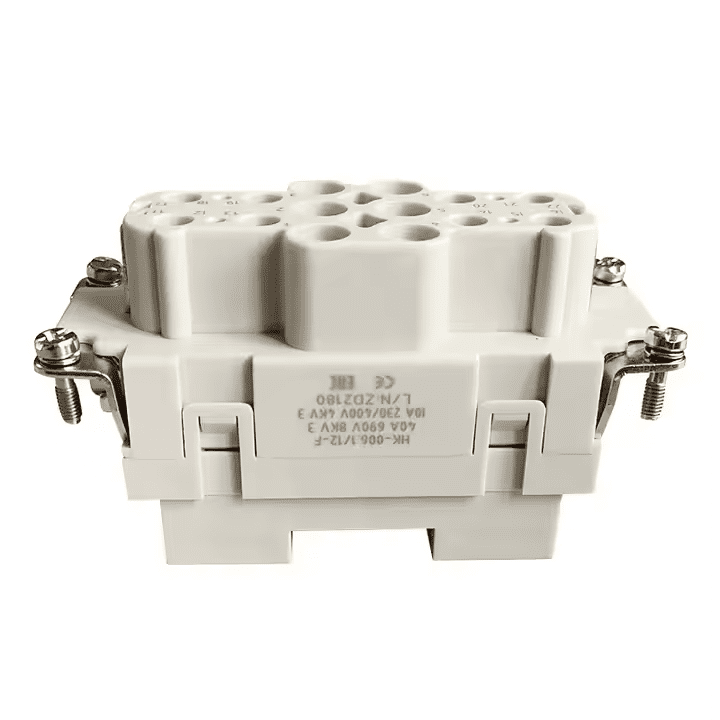

The HK-006.1/12-M heavy duty connector insert combines 40A/690V power and 10A/400V signal areas with axial/screw terminals. Featuring polycarbonate housing, UL 94 V0/ISO9001/CE certifications, and H16B compatibility, it suits renewable energy, automation, and power systems.
Using with female inserts HK-006.1/12-F
| Termination Method to Wire & Cable | Axial Screw Terminal/ Screw Terminal |
| Order No. | 09380182601 |
| Electrical Data Acc.to | DIN EN60664 EN61984 |
| Body Material | Polycarbonate |
| Pins | 6/12+PE |
| Power Area | |
| Rated Current | 40A |
| Rated Voltages | 690V |
| Rated impulse voltage | 6kV |
| Pollution degree | 3 |
| Signal Area | |
| Rated Current | 10A |
| Rated Voltages | 230/400V |
| Rated impulse voltage | 4kV |
| Pollution degree | 3 |
| Rated voltage acc. to UL/CSA | 600/300V |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Power Contacts | ||||
| Material | Copper Alloy | |||
| Surface | Hard-silver Plated | |||
| Contact Resistance | ≤0.5mΩ | |||
| Axial Screw Terminal | ||||
| mm² | 2.5-8mm² | |||
| AWG | 14-8 | |||
| Max. Insulation Diameter | 6.1mm | |||
| Tightening Torque | ||||
| mm² | 2.5 | 4 | 6 | 10 |
| N.m | 1.5 | 1.5 | 2 | 2 |
| Stripping length | ||||
| mm² | 2.5 | 4 | 6 | 10 |
| mm | 5+1 | 5+1 | 8+1 | 8+1 |
| Signal Contracts | |
| Material | Copper Alloy |
| Surface | Hard-silver Plated |
| Contact Resistance | ≤3mΩ |
| Screw Terminal | |
| mm^2 | 0.2-2.5mm^2 |
| AWG | 24-14 |
| Tightening Torque | 0.8Nm |
| Stripping length | 7.5mm |
Applications: Renewable Energy, Energy Distribution, Construction machinery, Power Systems, Automation, etc.
Provided OEM / ODM
