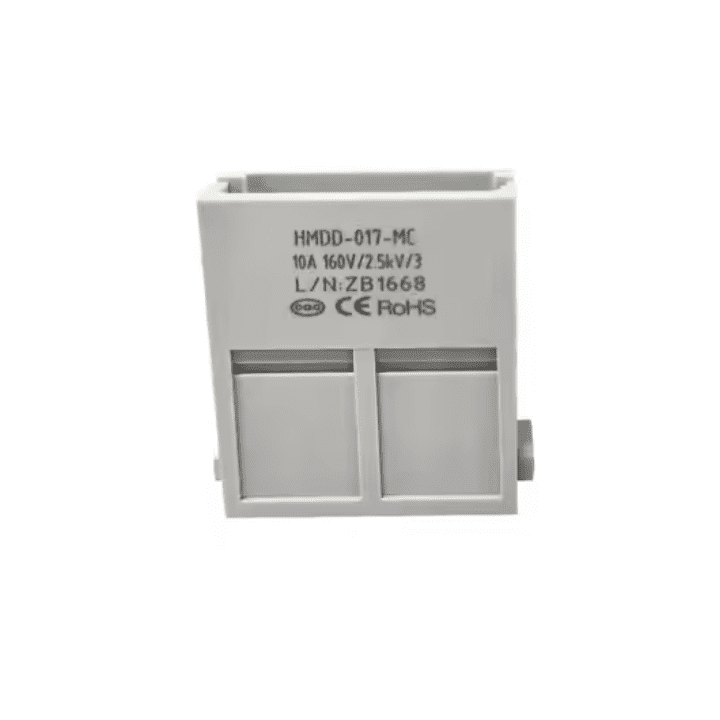

Designed for extreme conditions (-40℃–125℃), the HMDD-017-MC crimp module offers 2.5kV impulse protection and 500+ cycles. Its crimp terminals support flexible, space-saving setups in renewable energy and industrial systems with modular.
Using with Female insert HMD-017-FC
| Termination Method to Wire & Cable | Crimp Terminal |
| Order No. | 09140173001 |
| Electrical Data Acc.to | DIN EN60664 EN61984 |
| Body Material | Polycarbonate |
| Pins | 17 |
| Electrical Data Acc. To EN61 984 | |
| Rated Current | 10A |
| Rated Voltages | 160V |
| Rated Impulse Voltages | 2.5kv |
| Pollution degree | 3 |
| Rated Voltage Acc. To UL | 250V |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Applications | Wind power generation, Automation, Renewable Energy, Energy Distribution, Construction machinery, Power Systems, etc. |
| OEM | Provided |
| Material | Copper Alloy |
| Surface | Hard-silver Plated
Hard-gold Plated |
| Contact Resistance | ≤3mΩ |
| Crimp Terminal | |
| mm² | 0.14-2.5mm² |
| AWG | 26-14 |
Han HMDD-017 Crimp Module can be combined with a hinged frame and other modules.
