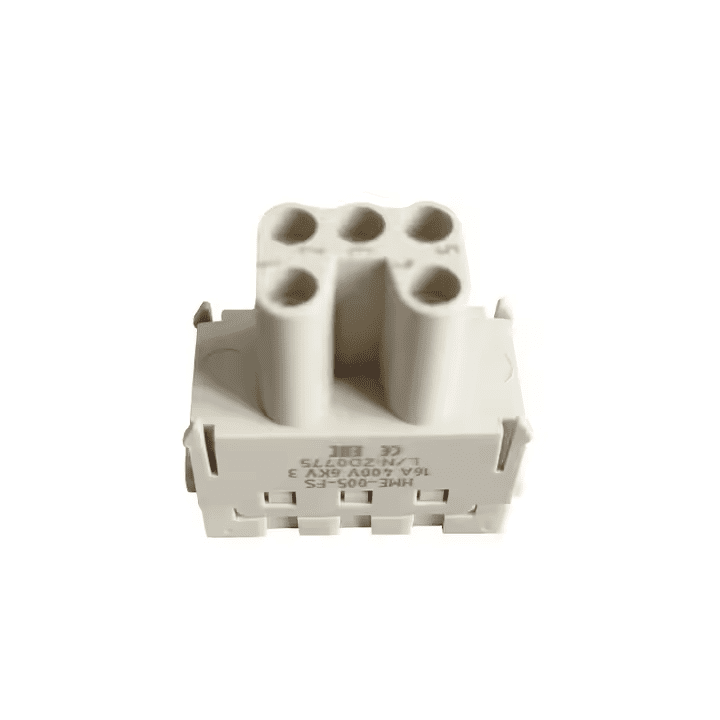

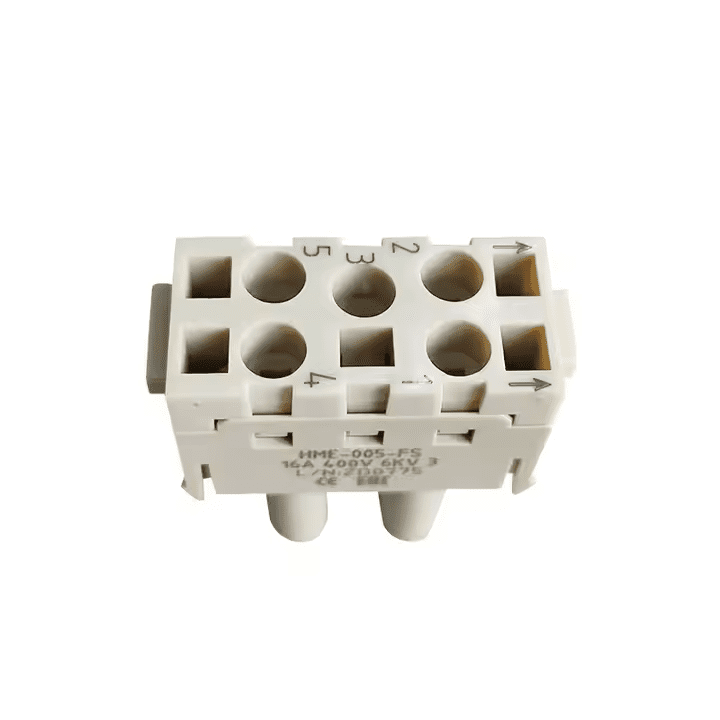

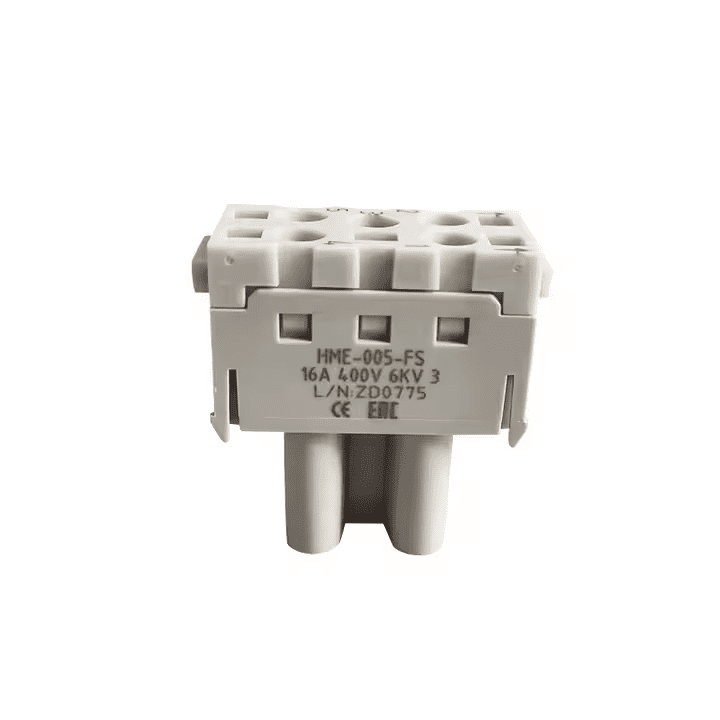

The HME-005-FS modular insert (HM series) features 5-pin cage-clamp terminals for 0.14-2.5mm² wires, rated 16A/400V with ≤3mΩ resistance. Part of the HM series, it combines seamlessly with other modules for space-efficient power/signal solutions in renewable energy and industrial systems.
Using with Male insert HME-005-MS
| Termination Method to Wire & Cable | Crimp Terminal |
| Order No. | 09140052716 |
| Electrical Data Acc.to | DIN EN60664 EN61984 |
| Body Material | Polycarbonate |
| Pins | 5 |
| Electrical Data Acc. To EN61 984 | |
| Rated Current | 16A |
| Rated Voltages | 400V |
| Rated Impulse Voltages | 6kv |
| Pollution degree | 3 |
| Rated Voltage Acc. To UL | 600V |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Applications | Construction machinery, Wind power generation, Automation, Renewable Energy, Energy Distribution, Power Systems, etc. |
| OEM | Provided |
| Material | Copper Alloy |
| Surface | Hard-silver Plated |
| Contact Resistance | ≤3mΩ |
| Cage Clamp Terminal | |
| mm² | 0.14-2.5mm² |
| AWG | 26-14 |
Han HME-005 Cage Clamp Module can be combined with a hinged frame and other modules.
