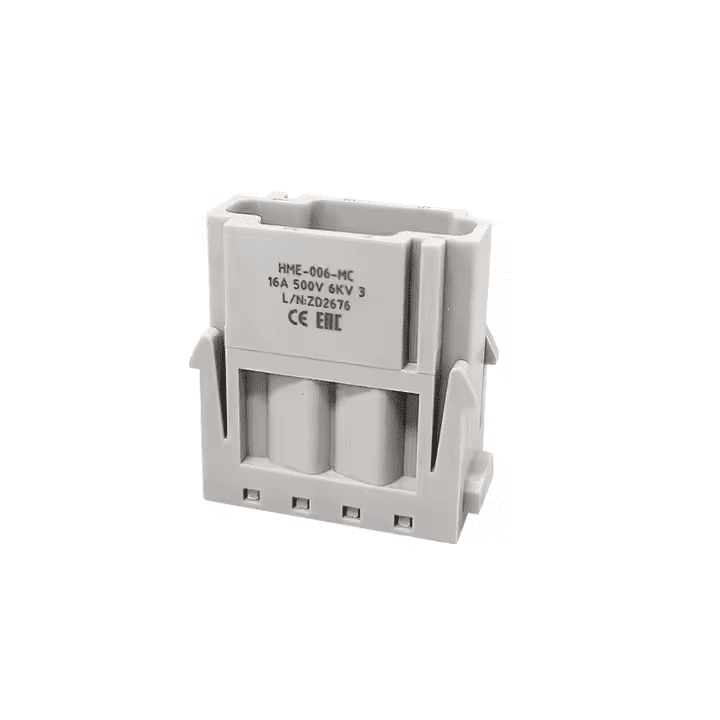

The HME-006-MC crimp module (HM series) features 6-pin terminals for 0.14-4mm² wires, rated 16A/500V with ≤1mΩ resistance. UL 94 V0-certified and ISO9001/CE-compliant, it supports wind power, automation, and modular configurations via hinged frame integration.
Using with Female insert HME-006-FC
| Termination Method to Wire & Cable | Crimp Terminal |
| Order No. | 09140063001 |
| Electrical Data Acc.to | DIN EN60664 EN61984 |
| Body Material | Polycarbonate |
| Pins | 6 |
| Electrical Data Acc. To EN61 984 | |
| Rated Current | 16A |
| Rated Voltages | 500V |
| Rated Impulse Voltages | 6kv |
| Pollution degree | 3 |
| Rated Voltage Acc. To UL | 600V |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Applications | Wind power generation, Automation, Renewable Energy, Construction machinery, Energy Distribution, Power Systems, etc. |
| OEM | Provided |
| Material | Copper Alloy |
| Surface | Hard-silver Plated Hard-gold Plated |
| Contact Resistance | ≤1mΩ |
| Crimp Terminal | |
| mm² | 0.14-4mm² |
| AWG | 26-12 |
Han HME-006 Crimp Module can be combined with a hinged frame and other modules.
