Featuring UL 94 V0 polycarbonate housing, the HMK-003/4-MC operates in -40℃–125℃ with 8kV impulse protection. Compatible with hinged frames, it enables modular expansion for energy systems and construction machinery, ensuring 500+ cycles and OEM adaptability.

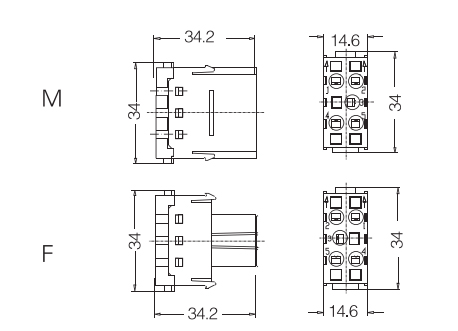

Using with Female insert HMK-003/4-FC
| Termination Method to Wire & Cable | Crimp Terminal |
| Order No. | 09140073001 |
| Electrical Data Acc.to | DIN EN60664 EN61984 |
| Body Material | Polycarbonate |
| Pins | 3/4 |
| Electrical Data Acc. To EN61 984 | |
| Power Contacts | |
| Rated Current | 40A |
| Rated Voltages | 830V |
| Rated Impulse Voltages | 8kv |
| Pollution degree | 3 |
| Signal Contacts | |
| Rated Current | 10A |
| Rated Voltages | 830V |
| Rated Impulse Voltages | 8kv |
| Rated Voltage Acc. To UI | 600V |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Applications | Wind power generation, Energy Distribution, Power Systems, Automation, Renewable Energy, Construction machinery, etc. |
| OEM | Provided |
| Material | Copper Alloy |
| Surface | Hard-silver Plated
Hard-gold Plated |
| Contact Resistance | |
| Power Contacts | ≤0.3mΩ |
| Signal Contacts | ≤3mΩ |
| Crimp Terminal | |
| mm² | |
| Power Contacts | 1.5-6mm² |
| Signal Contacts | 0.14-2.5mm² |
| AWG | |
| Power Contacts | 16-10 |
| Signal Contacts | 26-14 |
| Max. Insulation diameter | |
| Power Contacts | 5mm |

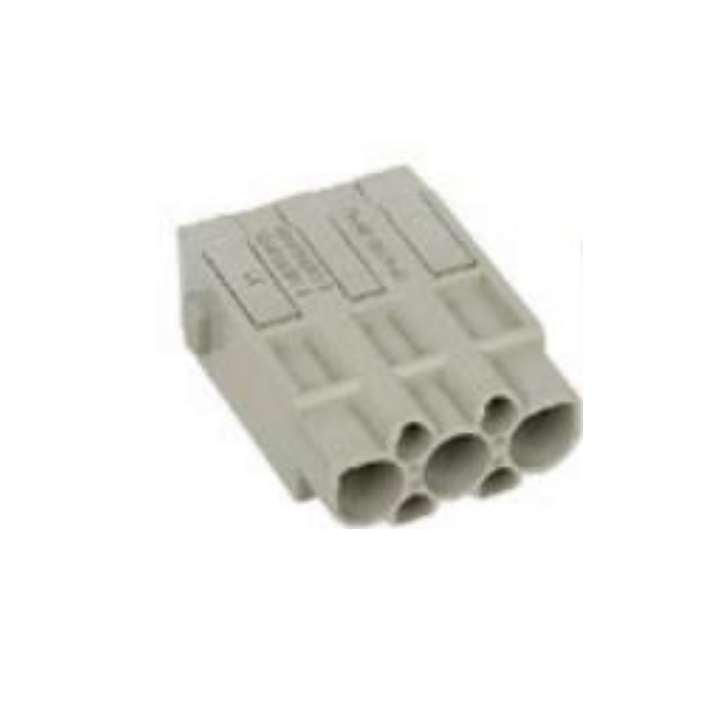

Han HMK-003/4 Crimp Module can be combined with a hinged frame and other modules.
