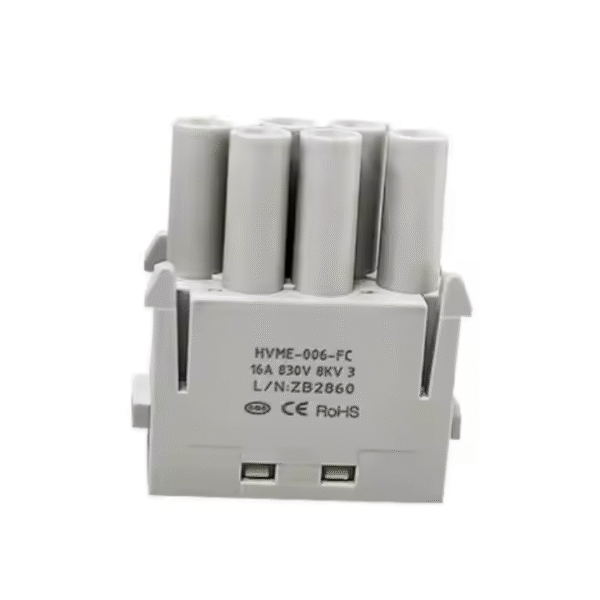

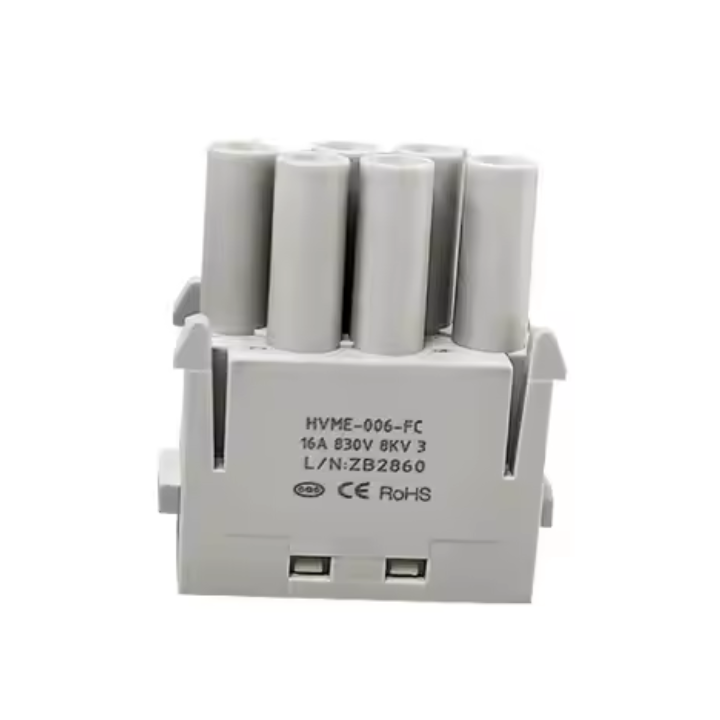

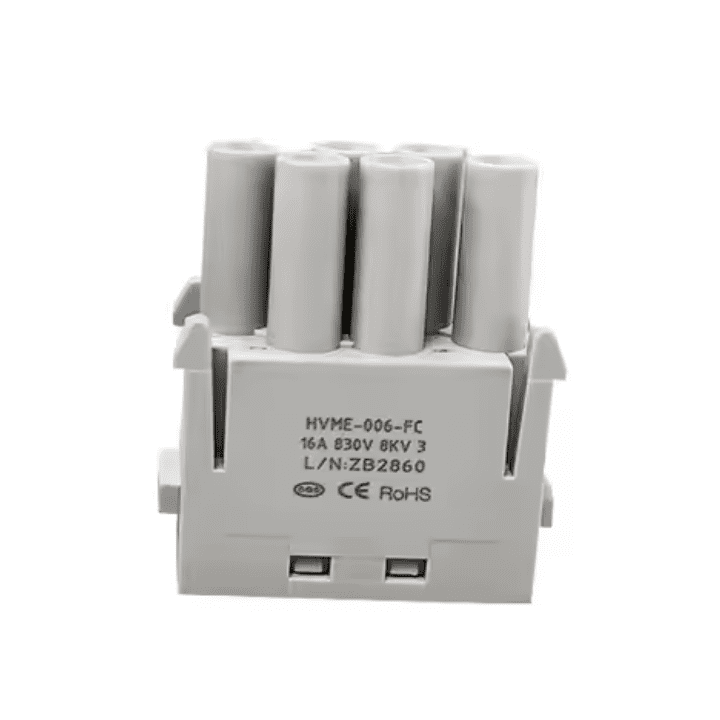

The HVME-006-MC (HM series) is a 6-pin crimp module rated for 16A/830V with ≤1mΩ resistance and 8kV impulse protection. UL 94 V0-certified, it supports 0.14-4mm² wires and integrates into hinged frames for automation, renewable energy, and modular industrial systems.

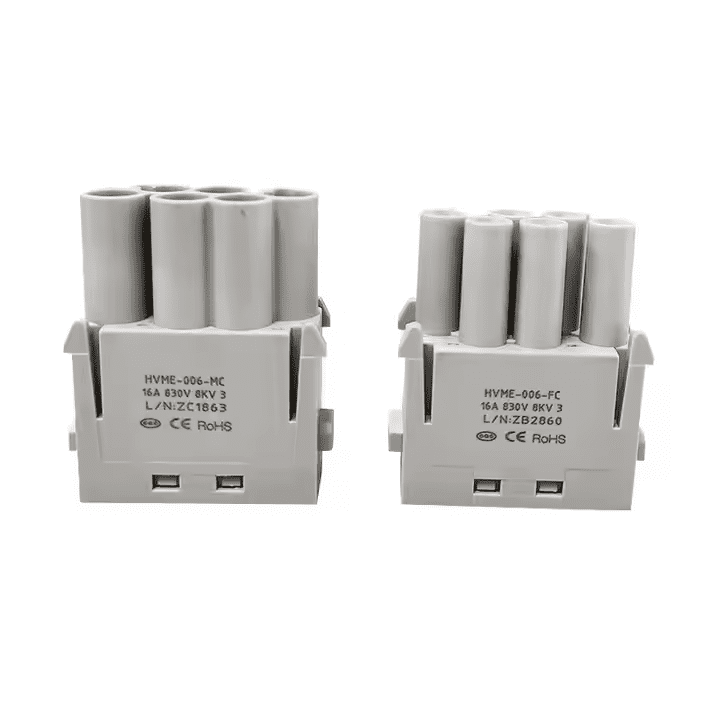

Using with Male insert HVME-006-MC
| Termination Method to Wire & Cable | Crimp Terminal |
| Order No. | 09140063141 |
| Electrical Data Acc.to | DIN EN60664 EN61984 |
| Body Material | Polycarbonate |
| Pins | 6 |
| Electrical Data Acc. To EN61 984 | |
| Rated Current | 16A |
| Rated Voltages | 830V |
| Rated Impulse Voltages | 8kv |
| Pollution degree | 3 |
| Rated Voltage Acc. To UL | 600V |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Applications | Automation, Renewable Energy, Construction machinery, Energy Distribution, Wind power generation,Power Systems, etc. |
| OEM | Provided |
| Material | Copper Alloy |
| Surface | Hard-silver Plated
Hard-gold Plated |
| Contact Resistance | ≤1mΩ |
| Crimp Terminal | |
| mm² | 0.14-4mm² |
| AWG | 26-12 |
Han HVME-006 Crimp Module can be combined with a hinged frame and other modules.
