How to Test Heavy Duty Rectangular Connectors Before Purchase

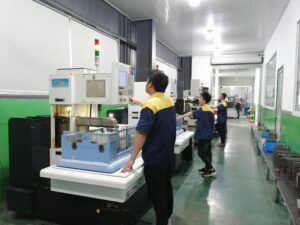

This is plastic injection machine for heavy duty connector

Choosing reliable heavy duty rectangular connectors is critical for industrial systems requiring robust electrical performance. Here’s a step-by-step guide to evaluating their quality before purchase, ensuring they meet your project’s demands.

1. Material Inspection

What to Check:

Conductive components: Inspect silver-plated or gold-plated copper alloy contacts—these metals ensure low resistance and corrosion resistance.

Insulating materials: Verify the plug core and confirm that it complies with UL 94 V-0 flame retardant rating.

Defects: Inspect for cracks, rough edges, or uneven insulation layers—these signal poor manufacturing.

Why It Matters: Subpar materials degrade faster under high currents or extreme temperatures.

2. Electrical Performance Tests

Essential Checks:

Resistance Test: Use a multimeter to measure contact resistance. Aim for ≤3mΩ—higher values suggest poor conductivity.

Continuity Test: Ensure uninterrupted current flow using a continuity tester.

Tip: For high-frequency applications, add impedance testing to prevent signal loss.

3.  Mechanical Strength Testing

Key Tests:

Pull-Force Test: Secure a wire to the connector and apply force. A quality connector holds firm without slippage.

Vibration Resistance: Simulate real-world conditions to check for loosening.

Red Flags: Wires detaching easily or housing cracks indicate weak mechanical design.

4. Environmental Durability

Test Conditions:

Temperature Cycling: Expose to -40°C and +125°C.

Humidity and waterproof performance: Heavy-duty connectors with an IP65 rating must be able to prevent water from entering when sprayed. Those with an IP68 rating must be tested to ensure they can prevent water from entering when submerged.

ip rating of heavy duty connectors
ip rating of heavy duty connectors

Corrosion: Salt spray testing for 48+ hours.

Pass Criteria: No corrosion or insulation cracks.

5. Compatibility verification

Steps:

Match the wire specifications with the connector specifications (e.g., 26-14AWG is suitable for Han E series heavy duty connector inserts).

Perform compatibility testing using actual cables—check whether tight, tool-free insertion is possible.

6. Certifications & Documentation

Ask Suppliers: For test reports (e.g., pull-force, thermal cycling).

Why Choose Our Heavy Duty Rectangular Connectors?

Rigorously Tested: Every batch undergoes 12+ quality checks, including 500+ mating cycles.

Custom Solutions: Available in 2-144+ contacts, 30A-400A ratings, and hybrid power-signal designs.

Global Compliance: Certified to UL, CE, and IEC standards.

Need Reliable Connectors?

�� Contact us for free samples or a detailed QC report!
