HA-032-F

Han A 32 pins heavy duty connector
Han A 32 pins heavy duty connector
Category Tags , ,

HA-032-F, the female inserts of the H32A connector series, with 16A, 250V, 32 pins, but with a slim body.

 Download the catalog.

Additional information

Body Material

Aluminium
Voltages

250V
Current

16A
Pins

16Pins
ask for a quote

HA-032-F 32-pin heavy-duty connector Specification

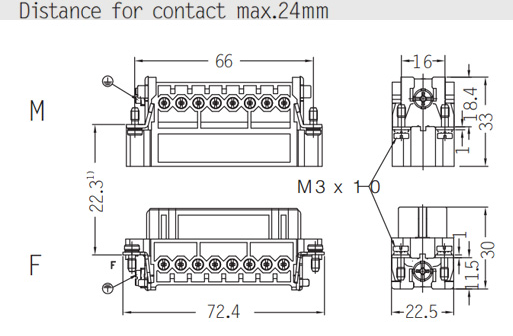

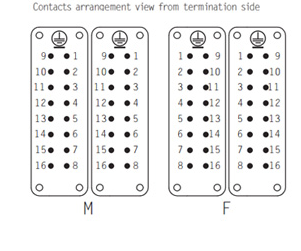

HA-032-M and HA-032-F contacts arrangement HA-032-F and HA-032-M heavy duty connector inserts specification HA-032-M and HA-032-F Panel cut out for inserts for use without hoods and housing



Features

  • HA Series
    —— You need two inserts for a complete assembly with 2 sets HA-016-F, HA-016-F(1-16) and HA-016-F(17-32)
    —— Each Number with laser-marked from 1 to 32
    —— Stripping length 7.5 mm, Tightening torque 0.5 Nm
Termination Method to Wire & Cable Screw Terminal
Order No. 09200162812, 09200162813
Body Material Polycarbonate
Rated Voltages 250V
Rated Current 16A
Pins 32Pins
Rated impulse voltage 4kV
Rated voltage acc. to UL/CSA 600V
Pollution degree 3
Limiting temperatures -40℃…+125℃
Insulation resistance ≥1010Ω
Certificate ISO9001 CE
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Applications Machinery, Renewable Energy, Professional Light and Sound,  Energy Distribution, etc.


Delivery Time Within 7 Days

HA-032-F 32-pin heavy-duty connector suitable for hoods and housing: H32A Hoods & Housing

H32A Hoods&Housing

  • High Construction is available.
  •  Various combinations of lock leverage systems
  • M32,PG21,P G29 Or other customized screw specification

This is H32A hoods and Housing

This is H32A hoods

This is H32A housing







Related products

Give you more about heavy duty connector.
