This 15-pin female connecto r insert offers UL 94 V0 flammability rating and operates from -40℃ to 125℃. With crimp terminals (0.14-2.5mm²) and low contact resistance. OEM solutions available.

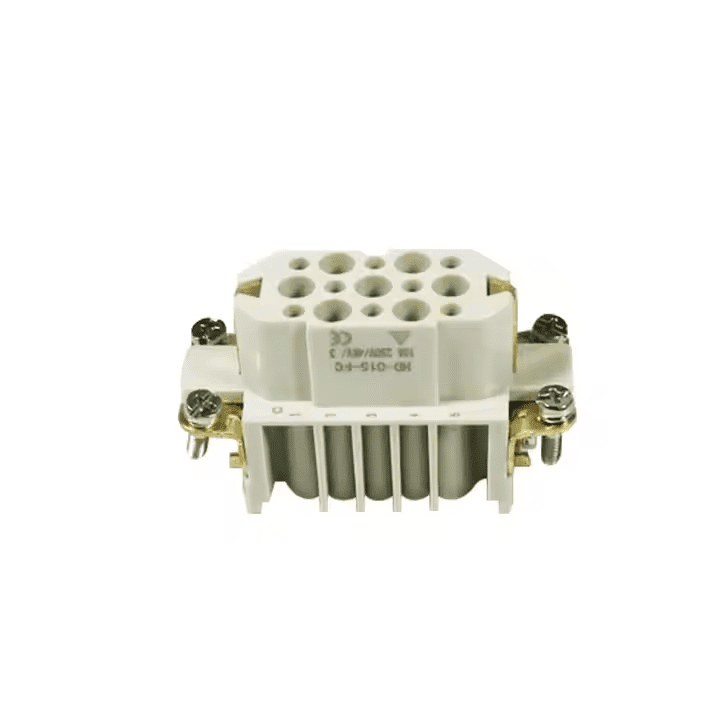

15 pins solution, with female inserts HD-015-MC
| Termination Method to Wire & Cable | Crimp Terminal |
| Order No. | 09210153101 |
| Body Material | Polycarbonate |
| Rated Voltages | 250V |
| Rated Current | 10A |
| Pins | 15 Pins |
| Rated impulse voltage | 4kV |
| Rated voltage acc. to UL/CSA | 600V |
| Pollution degree | 3 |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Applications | Wind power generation, Construction machinery, Renewable Energy, engineering machinery, Energy Distribution, etc. |
| OEM | Provided |
| Material | Copper Alloy |
| Surface | Hard-gold Plated
Hard-silver Plated |
| Contact Resistance | ≤3mΩ |
| Wire Gauge | 0.14-2.5mm^2 |
| AWG | 26-14 |
H10A Hoods and Housings Features:
