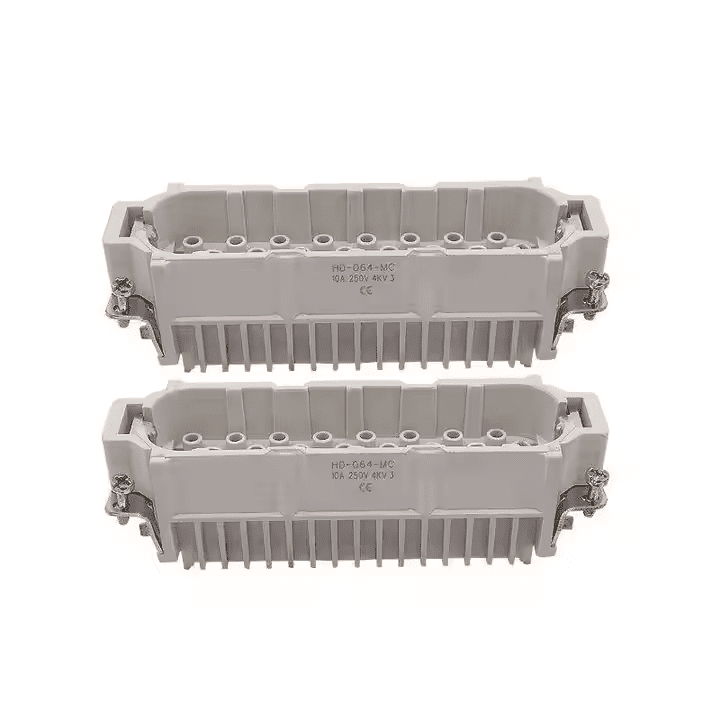

The HD-128-MC ultra-high-density connector integrates two HD-064-MC modules, delivering 128-pin crimp termination with gold/silver-plated contacts. Rated 10A/250V and UL 94 V0-certified, it supports renewable energy, wind power, and H48B housings under ISO9001/CE standards.
128 pins solution, with female inserts HD-128-FC， consisting of two HD-064-MC
| Termination Method to Wire & Cable | Crimp Terminal |
| Order No. | 09210643001 |
| Body Material | Polycarbonate |
| Rated Voltages | 250V |
| Rated Current | 10A |
| Pins | 128 Pins |
| Rated impulse voltage | 4kV |
| Rated voltage acc. to UL/CSA | 600V |
| Pollution degree | 3 |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Applications | Renewable Energy, Wind power generation, Construction machinery, Energy Distribution, Photovoltaic Industry, etc. |
| OEM | Provided |
| Material | Copper Alloy |
| Surface | Hard-gold Plated Hard-silver Plated |
| Contact Resistance | ≤3mΩ |
| Wire Gauge | 0.14-2.5mm^2 |
| AWG | 26-14 |
| Tightening Torque | 7.5Nm |
H48B Hoods and Housing Features:
