Designed for harsh environments (-40℃–125℃), this 42-pin insert offers ≤3mΩ contact resistance and 7.5Nm torque stability. Compatible with 0.14-2.5mm² wires and H10B shells, it excels in hot runners and renewable energy systems.

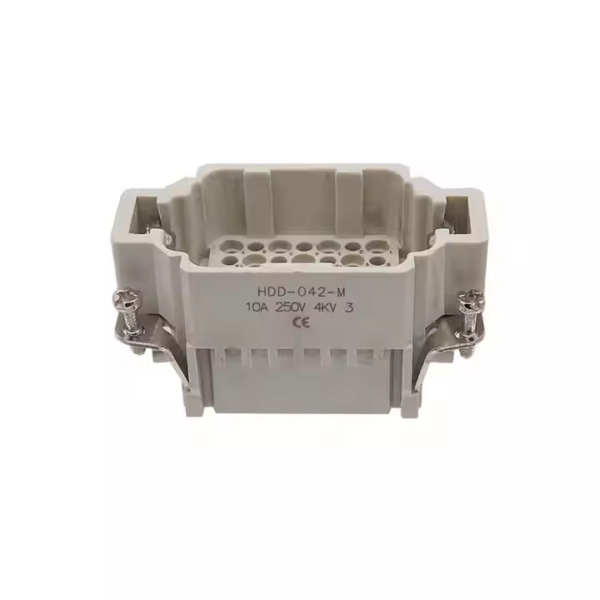

42 pins solution, with female inserts HDD-042-FC
| Termination Method to Wire & Cable | Crimp Terminal |
| Order No. | 09160423001 |
| Electrical Data Acc.to | DIN EN60664 EN61984 |
| Body Material | Polycarbonate |
| Rated Voltages | 250V |
| Rated Current | 10A |
| Pins | 42 Pins |
| Rated impulse voltage | 4kV |
| Rated voltage acc. to UL/CSA | 600V |
| Pollution degree | 3 |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Applications | Rail transit, Construction machinery, hot runners, Engineering Equipment, Renewable Energy, etc. |
| OEM | Provided |
| Material | Copper Alloy |
| Surface | Hard-gold Plated
Hard-silver Plated |
| Contact Resistance | ≤3mΩ |
| Wire Gauge | 0.14-2.5mm^2 |
| AWG | 26-14 |
| Tightening Torque | 7.5Nm |
Features of H10B housing and hoods
