HF16B-NLA

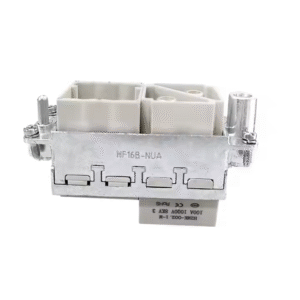

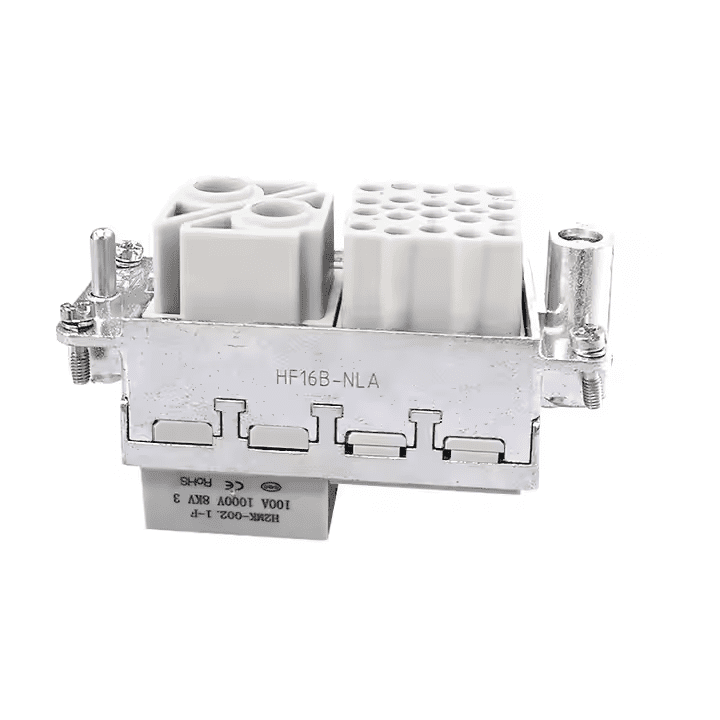

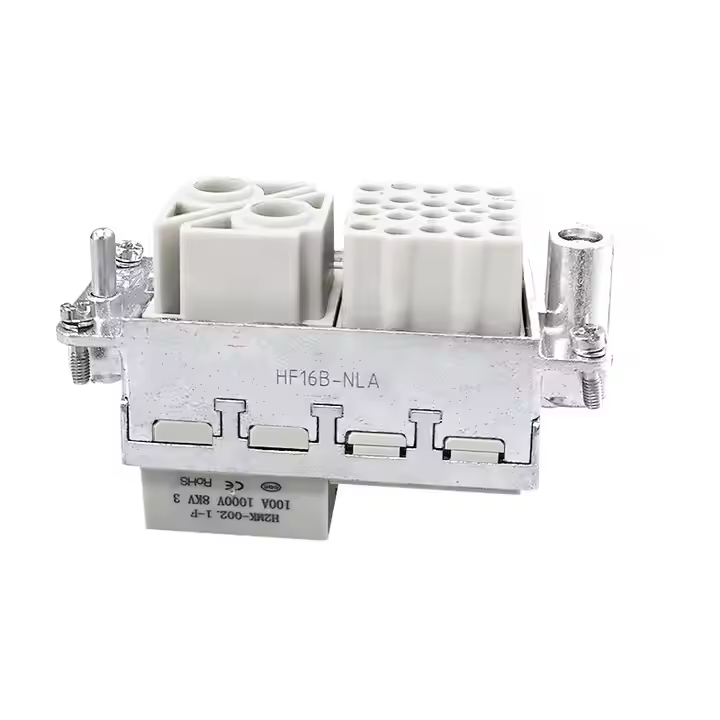

Han HF16B-NLA HM Series Hinged Frames for 4 Heavy Duty Connector Modules
Category Tags ,

HF16B-NLA heavy duty connector hinged  frame consolidates power/signal modules into a single 16B housing. Its ≥500-cycle durability and wide temperature tolerance streamline configurations for harsh industrial environments.

Additional information

ask for a quote

Han HF16B-NLA HM Series Hinged Frames for 4  Heavy Duty Connector Modules

Suitable Shell 16BHood/Housing
Number of modules 4
-Power side 4-10mm2 (AWG12-8)
-Signal side 1-2.5mm2 (AWG18-14)
Material Die-cast zinc alloy
Limiting temperatures -40℃…+125℃
Mechanical working life(mating cycles) ≥500 ≥500
ORDER NUMBER 09140160303
Marking A-D
Applications Construction machinery, Wind power generation, Automation, Renewable Energy, Power Systems, Energy Distribution, etc.

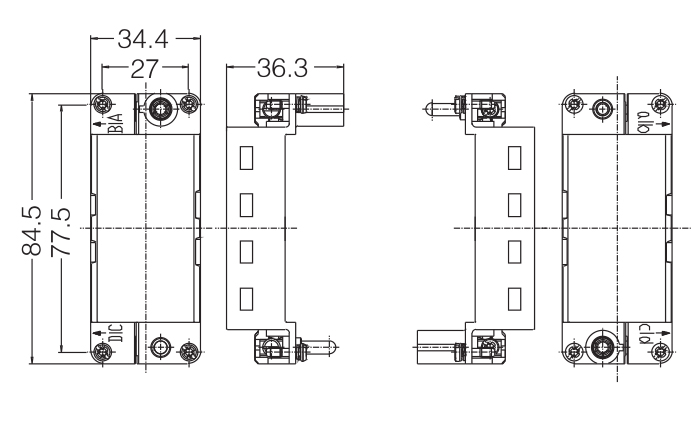

Specification of han hm series hf16b hinged frames

Specification of han hm series hf16b hinged frames



HM-Series Hinged Frame Installation Guide：

  1. Prepare the HM-Series Hinged Frame and module
  2. Loosen left/right screws on the die-cast zinc alloy frame to release the hinge mechanism.
  3. Insert Modules
  4. Align module side protrusions with frame guide slots—slide modules into place until fully seated.
  5. Mount the assembled frame into Han 6B hoods/housings for enclosed applications.

HM Series heavy duty connector modules dismounting instructions
