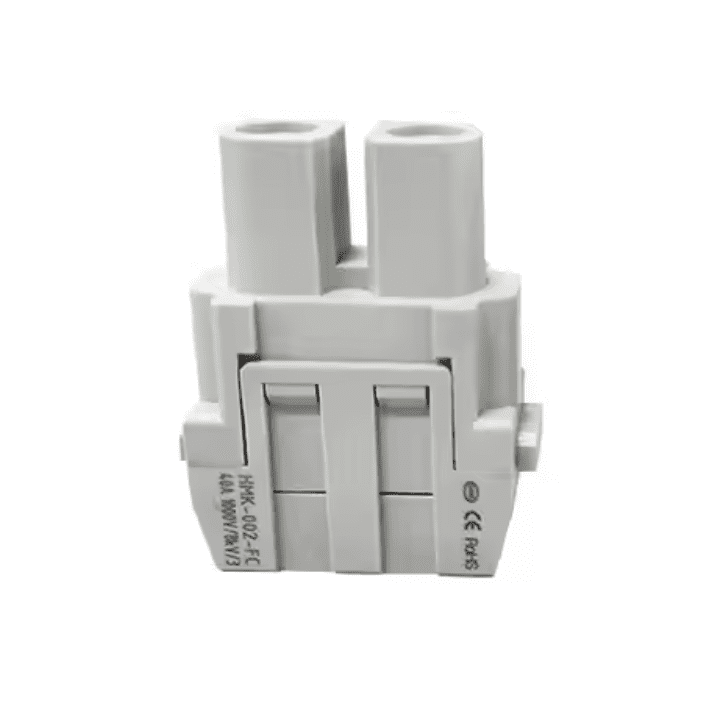

This HM-series HMK-002.1-F module offers 40A/1000V axial screw termination for 2.5-10mm² cables, with ≤0.5mΩ resistance and 8kV impulse protection. Compatible with hinged frames, it enables modular expansion in wind power and energy systems, operating reliably from -40℃ to 125℃.

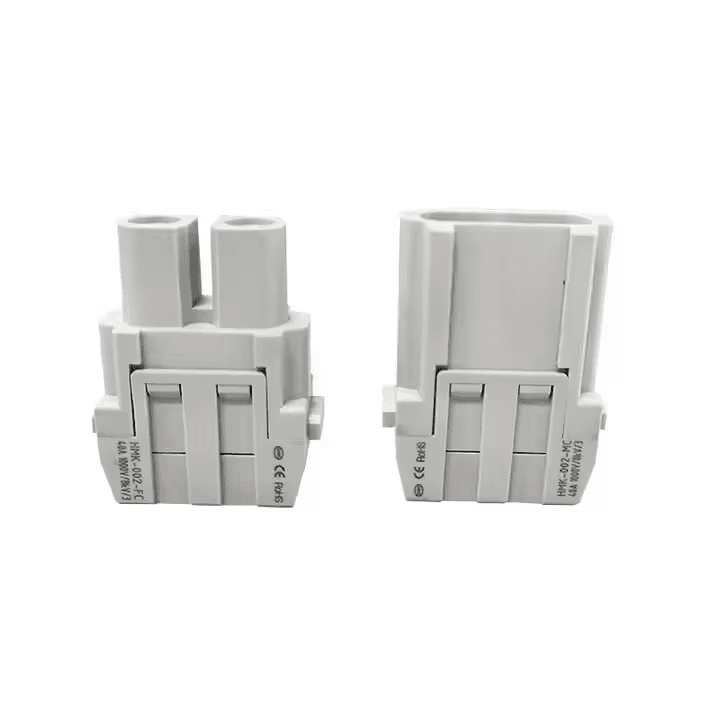

Using with female inserts HMK-002.1-M
| Termination Method to Wire & Cable | Axial Screw Terminal |
| Order No. | 09140022701, 09140022702 |
| Electrical Data Acc.to | DIN EN60664 EN61984 |
| Body Material | Polycarbonate |
| Rated Voltages | 1000V |
| Rated Current | 40A |
| Pins | 2 |
| Rated impulse voltage | 8kV |
| Rated voltage acc. to UL/CSA | 600V |
| Pollution degree | 3 |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Applications | Wind power generation, Renewable Energy, Construction machinery, Energy Distribution, Power Systems, Automation, etc. |
| OEM | Provided |
| Material | Copper Alloy | |||
| Surface | Hard-silver Plated | |||
| Contact Resistance | 0.5mΩ | |||
| To IEC 60 228 Class 5 | ||||
| Axial Screw Terminal | ||||
| mm² | 2.5-10mm² | |||
| AWG | 14-8 | |||
| Hexagonal | SW 2 | |||
| Stripping length | ||||
| mm² | 2.5 | 4 | 6 | 10 |
| Nm | 5+1 | 5+1 | 8+1 | 11+1 |
| Tightening Torque | ||||
| mm² | 2.5 | 4 | 6 | 10 |
| Nm | 1.5 | 1.5 | 2 | 2 |
Han HMK-002 can be combined with a hinged frame and other modules.
