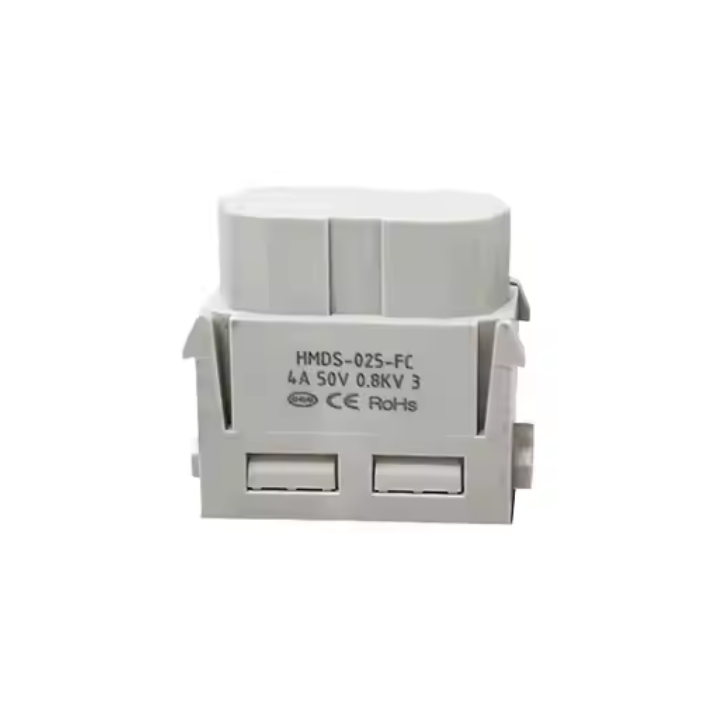

Suitable for extreme environments (-40℃–125℃), this crimp terminal module offers 0.8kV impulse protection and 500+ cycles. Its high-density design supports space-saving configurations in wind power and industrial automation via HM-series hinged frame compatibility.

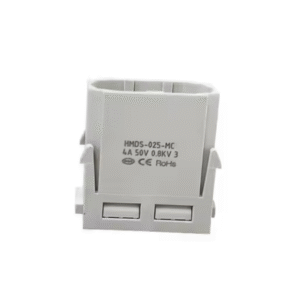

Using with Male insert HMDS-025-MC
| Termination Method to Wire & Cable | Crimp Terminal |
| Order No. | 09140253101 |
| Electrical Data Acc.to | DIN EN60664 EN61984 |
| Body Material | Polycarbonate |
| Pins | 25 |
| Electrical Data Acc. To EN61 984 | |
| Rated Current | 4A |
| Rated Voltages | 50V |
| Rated Impulse Voltages | 0.8kv |
| Pollution degree | 3 |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Applications | Wind power generation, Power Systems, Automation, Renewable Energy, Energy Distribution, Construction machinery,etc. |
| OEM | Provided |
| Material | Copper Alloy |
| Surface | Hard-silver Plated
Hard-gold Plated |
| Contact Resistance | ≤3mΩ |
| Crimp Terminal | |
| mm² | 0.09-0.52mm² |
| AWG | 28-20 |

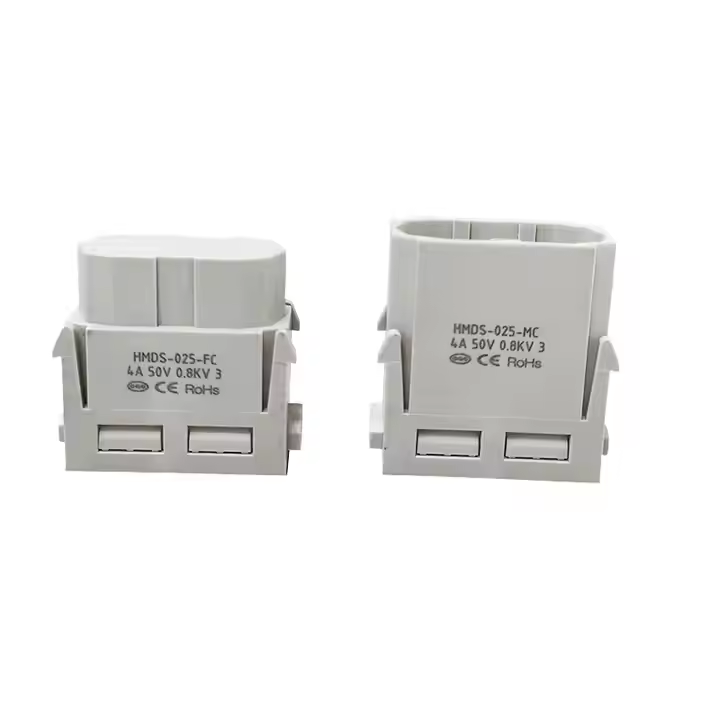

Han HMDS-025 Crimp Module can be combined with a hinged frame and other modules.
