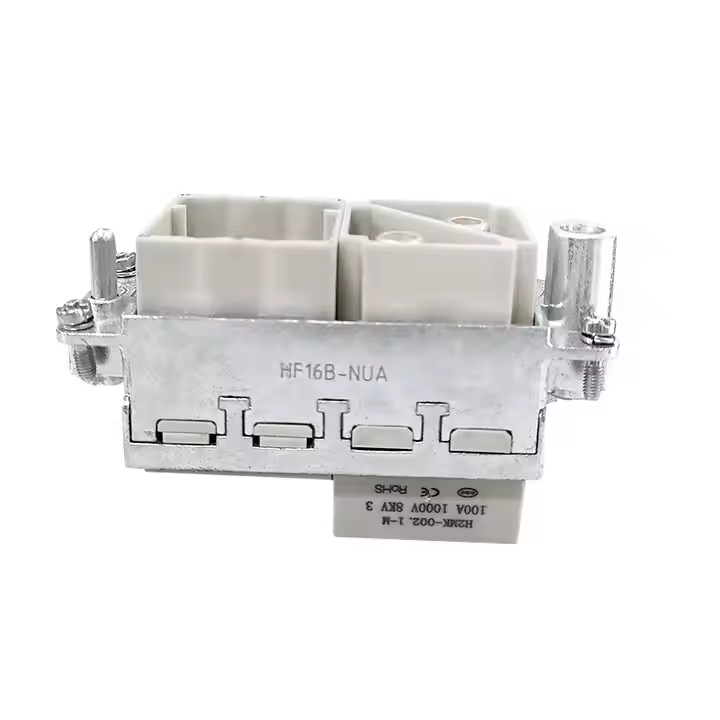

HF16B-NUA

HF16B-NUA HM Series 4 Modules Hinged Frames for Heavy Duty Connector
Category Tags ,

The HF16B-NUA hinged frame accommodates four HM-series modules within Han 16B hoods and housings, facilitating hybrid 4-10mm² (AWG12-8) power and 1-2.5mm² (AWG18-14) signal integration. Zinc alloy construction guarantees stability across -40℃–125℃ extremes.

Additional information

ask for a quote

Han HF16B-NUA HM Series 4 Modules Hinged Frames for Heavy Duty Connector

Suitable Shell 16BHood/Housing
Number of modules 4
-Power side 4-10mm2 (AWG12-8)
-Signal side 1-2.5mm2 (AWG18-14)
Material Die-cast zinc alloy
Limiting temperatures -40℃…+125℃
Mechanical working life(mating cycles) ≥500 ≥500
ORDER NUMBER 09140160303
Marking A-D
Applications Construction machinery, Wind power generation, Automation, Renewable Energy, Power Systems, Energy Distribution, etc.

Specification of han hm series hf16b hinged frames

Specification of han hm series hf16b hinged frames

HM-Series Hinged Frame Installation Guide：

  1. Prepare the HM-Series Hinged Frame and module
  2. Loosen left/right screws on the die-cast zinc alloy frame to release the hinge mechanism.
  3. Insert Modules
  4. Align module side protrusions with frame guide slots. Slide modules into place until fully seated.
  5. For enclosed applications, mount the assembled frame into Han 6B hoods/housings.

HM Series heavy duty connector modules dismounting instructions
