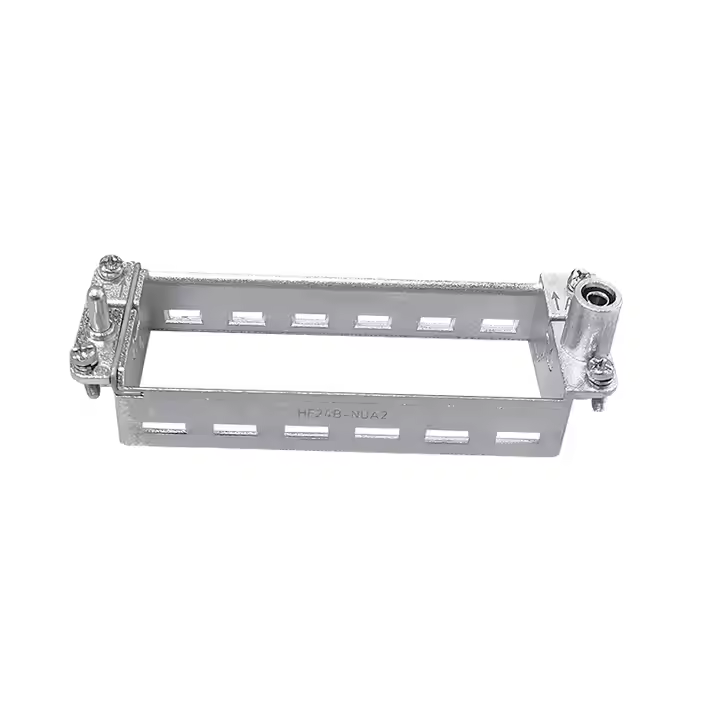

This HF24B-NUA hinged frame combines six modules in a Han® 24B housing, streamlining 4-10mm² (AWG12-8) power and 1-2.5mm² (AWG18-14) signal integration. With die-cast zinc alloy durability and -40℃–125℃ tolerance, it enhances connectivity efficiency for renewable energy and automated industrial systems.

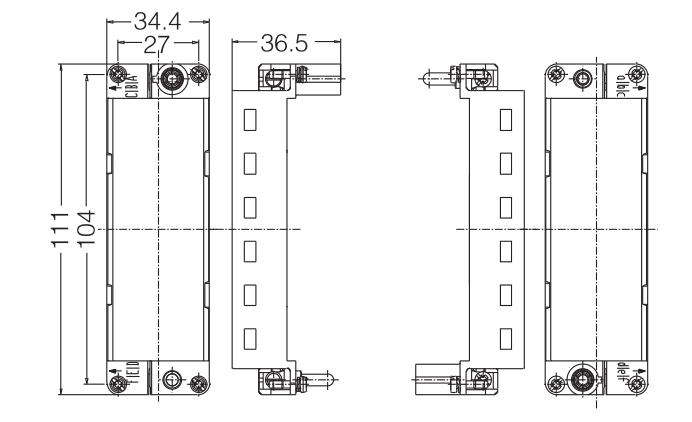

| Suitable Shell | 16BHood/Housing |
| Number of modules | 6 |
| -Power side | 4-10mm2 (AWG12-8) |
| -Signal side | 1-2.5mm2 (AWG18-14) |
| Material | Die-cast zinc alloy |
| Limiting temperatures | -40℃…+125℃ |
| Mechanical working life(mating cycles) ≥500 | ≥500 |
| ORDER NUMBER | 09140240303 |
| Marking | A-F |
| Applications | Wind power generation, Automation, Renewable Energy, Power Systems, Construction machinery, Energy Distribution, etc. |

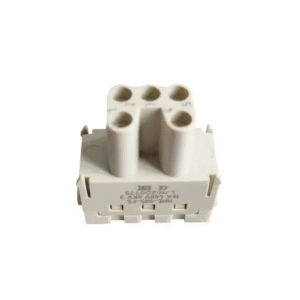

1. Prepare the HM-Series Hinged Frame and module

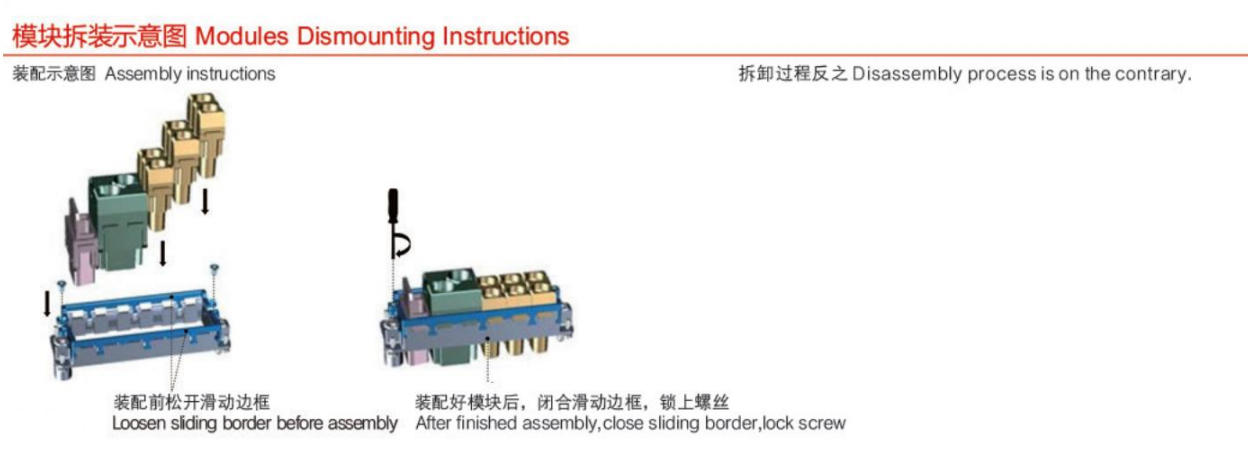

2. Loosen left/right screws on the die-cast zinc alloy frame to release the hinge mechanism.
3. Insert Modules
4. Align module side protrusions with frame guide slots—slide modules into place until fully seated.
5. Mount the assembled frame into Han 6B hoods/housings for enclosed applications.
