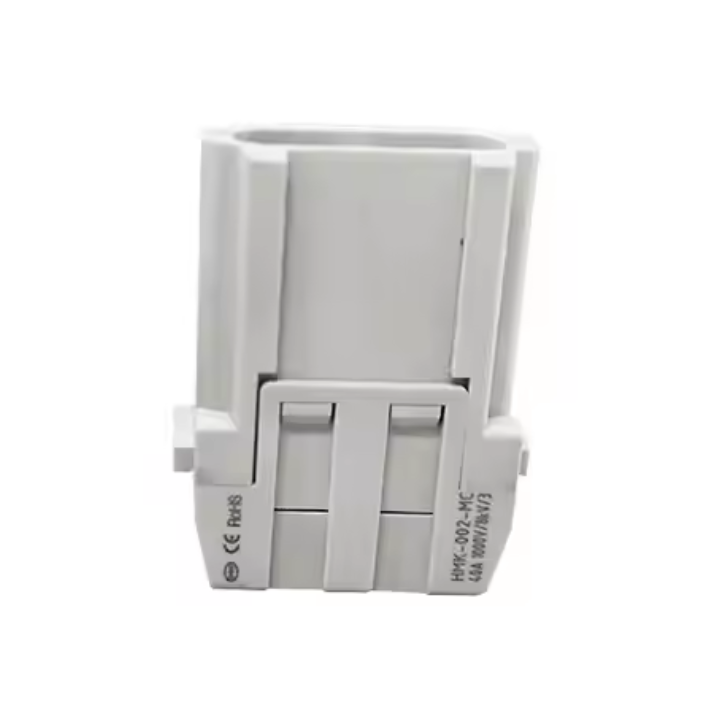

The HMK-002.1-M modular insert combines 2-pin axial screw terminals (2.5-10mm²) with 40A/1000V capacity and UL 94 V0 compliance. Designed for HM series flexibility, it supports rapid assembly in wind power and energy systems via hinged frame integration.

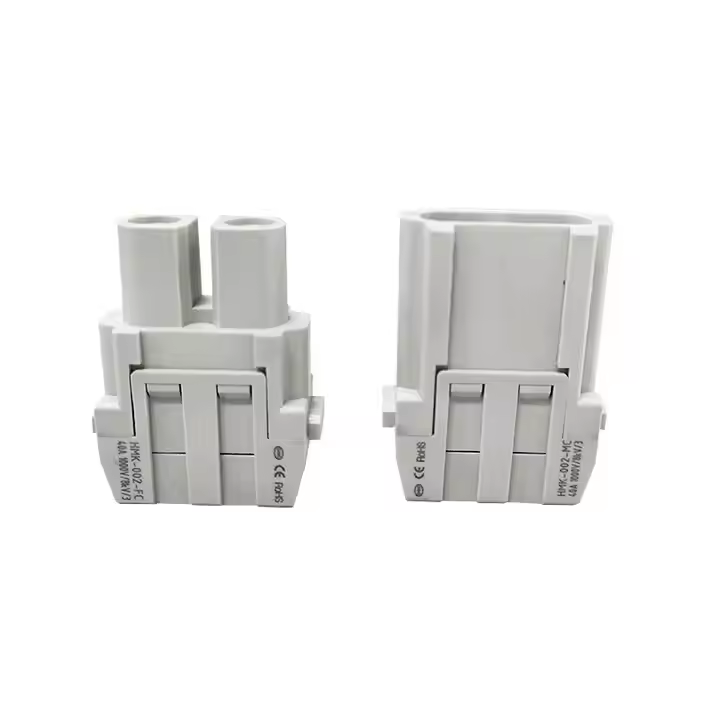

Using with female inserts HMK-002.1-F
| Termination Method to Wire & Cable | Axial Screw Terminal |
| Order No. | 09140022601, 09140022602 |
| Electrical Data Acc.to | DIN EN60664 EN61984 |
| Body Material | Polycarbonate |
| Rated Voltages | 1000V |
| Rated Current | 40A |
| Pins | 2 |
| Rated impulse voltage | 8kV |
| Rated voltage acc. to UL/CSA | 600V |
| Pollution degree | 3 |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Applications | Wind power generation, Renewable Energy, Construction machinery, Energy Distribution, Power Systems, Automation, etc. |
| OEM | Provided |
| Material | Copper Alloy | |||
| Surface | Hard-silver Plated | |||
| Contact Resistance | 0.5mΩ | |||
| To IEC 60 228 Class 5 | ||||
| Axial Screw Terminal | ||||
| mm² | 2.5-10mm² | |||
| AWG | 14-8 | |||
| Hexagonal | SW 2 | |||
| Stripping length | ||||
| mm² | 2.5 | 4 | 6 | 10 |
| Nm | 5+1 | 5+1 | 8+1 | 11+1 |
| Tightening Torque | ||||
| mm² | 2.5 | 4 | 6 | 10 |
| Nm | 1.5 | 1.5 | 2 | 2 |
Han HMK-002 can be combined with a hinged frame and other modules.
