HF24B-NLA

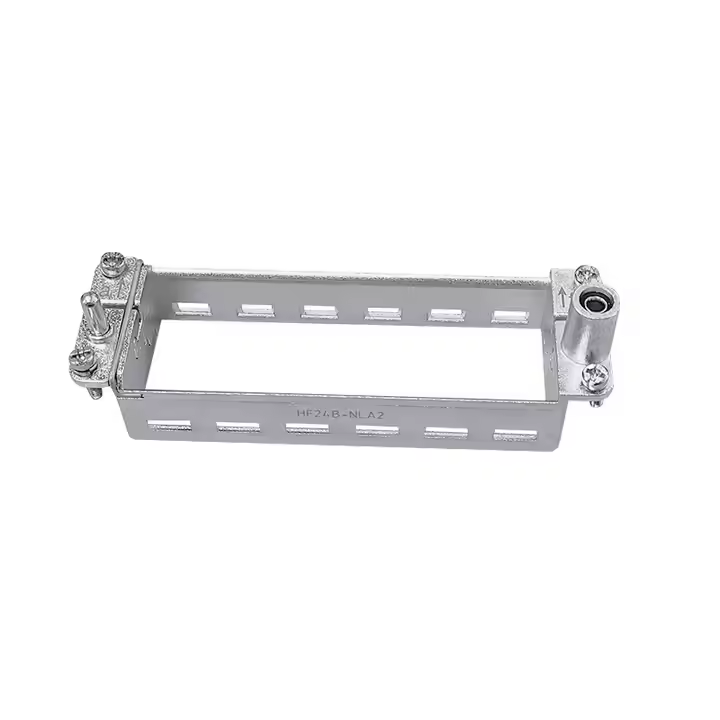

Han HF24B-NLA HM Series Hinged Frames for 6 Heavy Duty Connector Modules

Category HM Series/Modular Connector Tags 6 modules, Hinged Frames

The HF24B-NLA hinged frame (HM series) enables 6-module integration within Han® 24B housings, accommodating 4-10mm² (AWG12-8) power and 1-2.5mm² (AWG18-14) signal lines. Engineered with die-cast zinc alloy, it delivers stability across -40℃–125℃ and 500+ mating cycles.

Additional information

Han HF24B-NLA HM Series Hinged Frames for 6 Heavy Duty Connector Modules

Suitable Shell	16BHood/Housing
Number of modules	6
-Power side	4-10mm2 (AWG12-8)
-Signal side	1-2.5mm2 (AWG18-14)
Material	Die-cast zinc alloy
Limiting temperatures	-40℃…+125℃
Mechanical working life(mating cycles) ≥500	≥500
ORDER NUMBER	09140240313
Marking	a-f
Applications	Wind power generation, Automation, Renewable Energy, Power Systems, Construction machinery, Energy Distribution, etc.

Specification of Han HF24B hinged frames

HM-Series Hinged Frame Installation Guide：

Prepare the HM-Series Hinged Frame and module
Loosen left/right screws on the die-cast zinc alloy frame to release the hinge mechanism.
Insert Modules
Align module side protrusions with frame guide slots—slide modules into place until fully seated.
Mount the assembled frame into Han 6B hoods/housings for enclosed applications.
