HF6B-NLA

Han HF6B NLA 2 ModularS Hinged Frame PLUS Connectors
Category Tags ,

HF6B-NLA modular frame combines two HM-series inserts into a single 6B housing, ideal for hybrid power/signal systems ,and etc. Featuring temperature-resistant zinc alloy and 500+ cycles, it streamlines configurations for renewable energy and industrial automation.

Additional information

ask for a quote

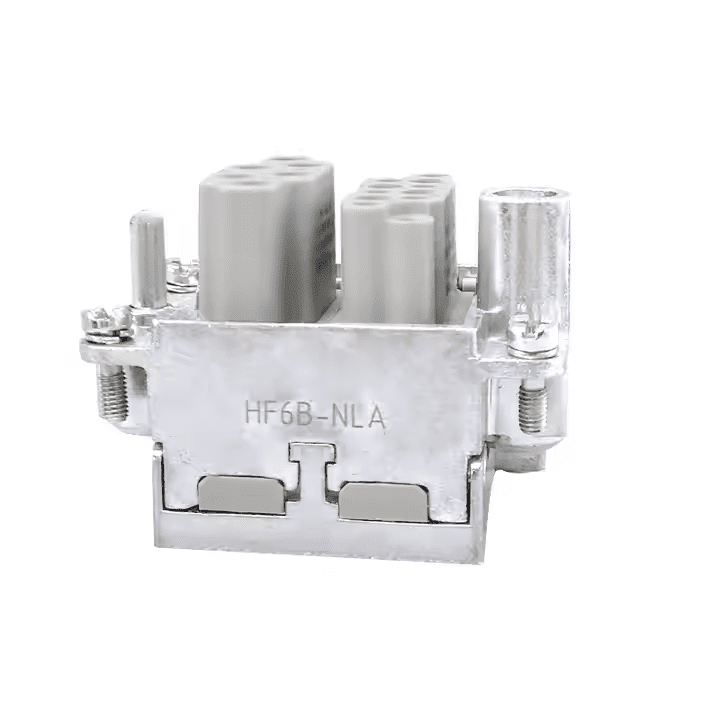

Han HF6B-NLA HM Series 2 Modules Hinged Frames for Heavy Duty Connector

Suitable Shell 6BHood/Housing
Number of modules 2
-Power side 4-10mm2 (AWG12-8)
-Signal side 1-2.5mm2 (AWG18-14)
Material Die-cast zinc alloy
Limiting temperatures -40℃…+125℃
Mechanical working life(mating cycles) ≥500 ≥500
ORDER NUMBER 09140060313
Marking a-b
Applications Wind power generation, Automation, Renewable Energy, Power Systems, Energy Distribution, Construction machinery, etc.

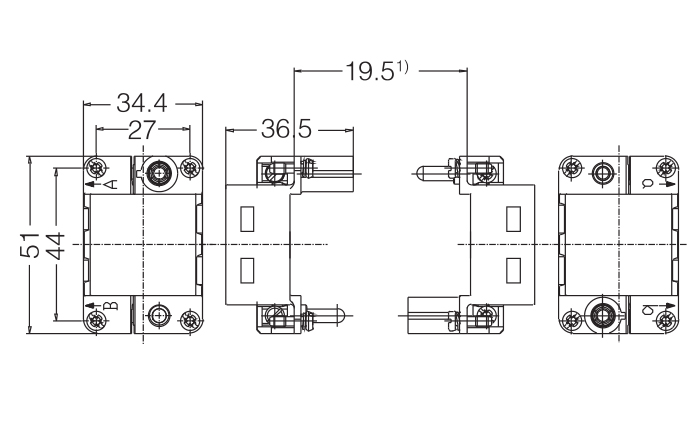

Specification of han hm series hf6b hinged frames

Specification of han hm series hf6b hinged frames

HM-Series Hinged Frame Installation Guide：

  1. Prepare the HM-Series Hinged Frame and module
  2. Loosen left/right screws on the die-cast zinc alloy frame to release the hinge mechanism.
  3. Insert Modules
  4. Align module side protrusions with frame guide slots. Slide modules into place until fully seated.
  5. For enclosed applications, mount the assembled frame into Han 6B hoods/housings.

HM Series heavy duty connector modules dismounting instructions
