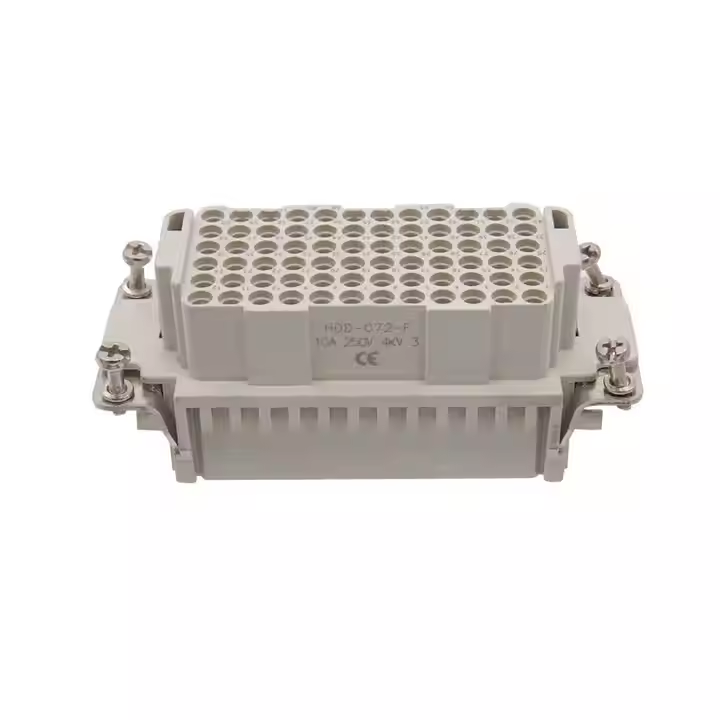

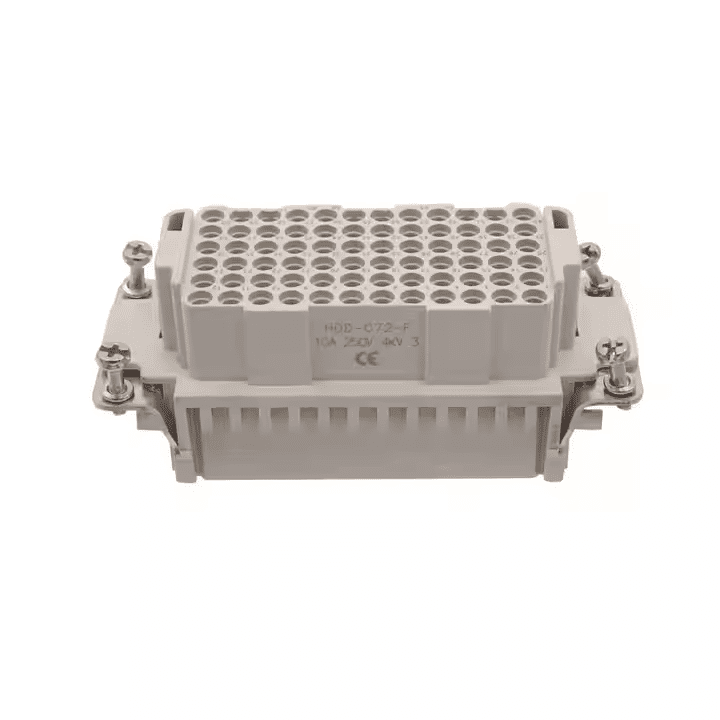

The HDD-072-FC ultra-high-density connector female insert offers 72-pin crimp termination with gold/silver-plated contacts and polycarbonate housing. Rated 10A/250V (UL 94 V0, ISO9001/CE), it supports rail transit, construction machinery, and H16B housings.
72 pins solution, with male inserts HDD-072-MC
| Termination Method to Wire & Cable | Crimp Terminal |
| Order No. | 09160723101 |
| Electrical Data Acc.to | DIN EN60664 EN61984 |
| Body Material | Polycarbonate |
| Rated Voltages | 250V |
| Rated Current | 10A |
| Pins | 72 Pins |
| Rated impulse voltage | 4kV |
| Rated voltage acc. to UL/CSA | 600V |
| Pollution degree | 3 |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Applications | Renewable Energy, Construction Machinery, Rail transit, hot runners, Engineering Equipment, etc. |
| OEM | Provided |
| Material | Copper Alloy |
| Surface | Hard-gold Plated
Hard-silver Plated |
| Contact Resistance | ≤3mΩ |
| Wire Gauge | 0.14-2.5mm^2 |
| AWG | 26-14 |
| Tightening Torque | 7.5Nm |
H16B hoods and housing features:
