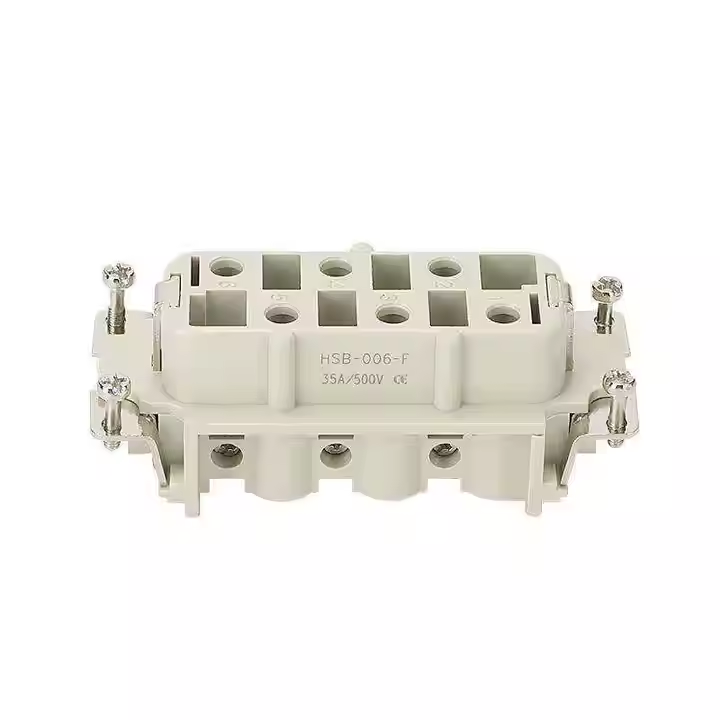

HSB-006-F high current heavy duty insert is designed for extreme environments (-40℃–125℃), this 6-pin insert supports 1.5-6mm² wires, offering 6kV impulse protection and 500+ mating cycles. Ideal for renewable energy and heavy machinery, with OEM customization available.

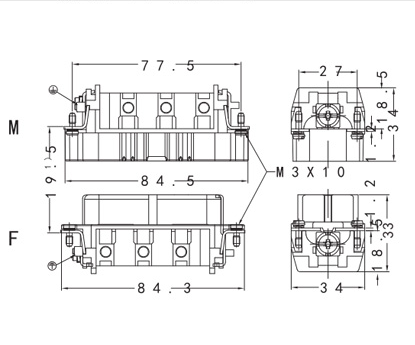

6 pins solution, with male inserts HSB-006-M
| Termination Method to Wire & Cable | Screw Terminal |
| Order No. | 09310062701 |
| Electrical Data Acc.to | DIN EN60664 EN61984 |
| Body Material | Polycarbonate |
| Rated Voltages | 400V/690V |
| Rated Current | 35A |

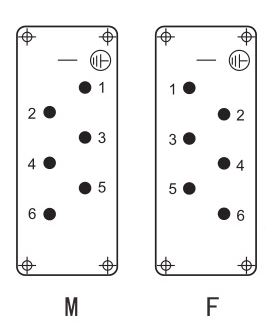

| Pins | 6 Pins |
| Rated impulse voltage | 6kV |
| Rated voltage acc. to UL/CSA | 600V |
| Pollution degree | 3 |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Applications | Wind power generation, Construction machinery, Rail transportation, Engineering Equipment, Renewable Energy, etc. |
| OEM | Provided |
| Material | Copper Alloy |
| Surface | Hard-gold Plated
Hard-silver Plated |
| Contact Resistance | ≤1mΩ |
| Wire Gauge | 1.5-6mm^2 |
| AWG | 10 |
| Tightening Torque | 1.2Nm |

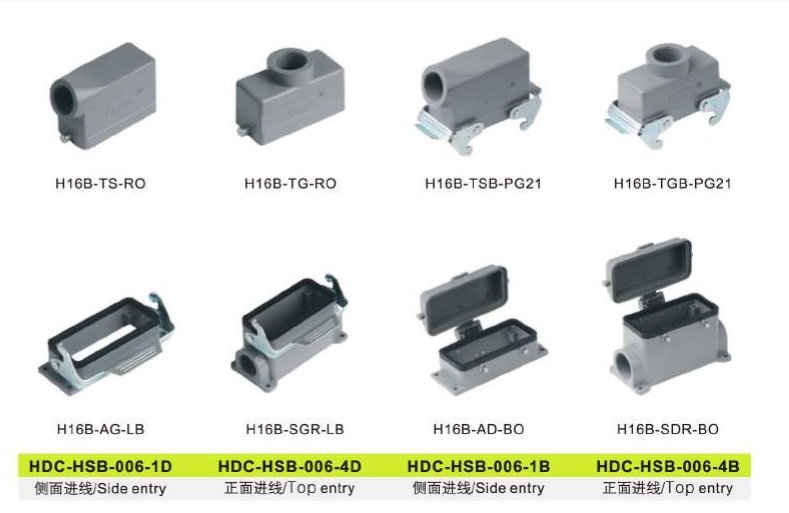

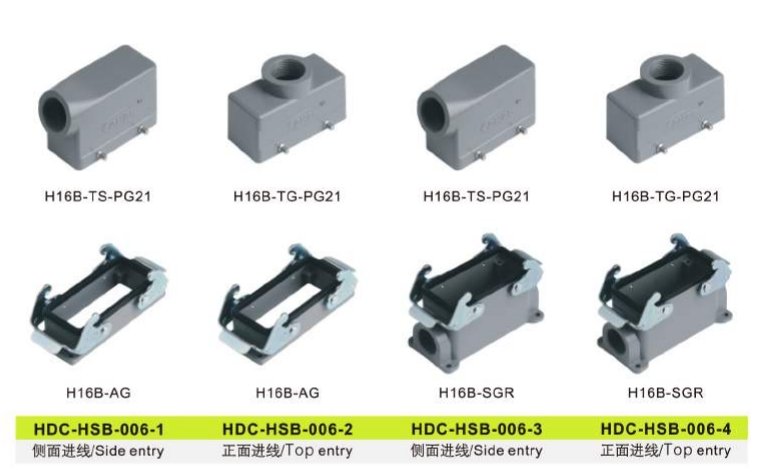

H16B hoods and housing features:
