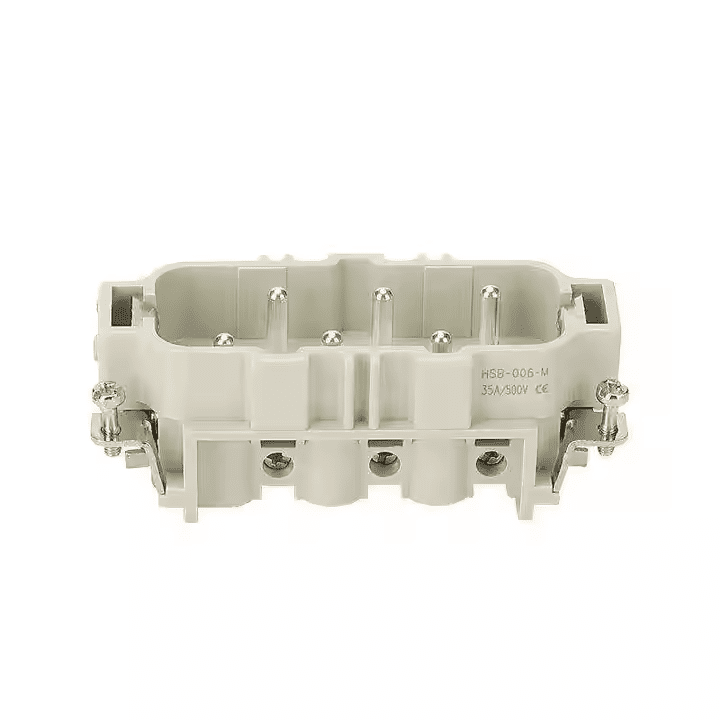

The HSB-006-M high-current heavy duty connector insert features 6-pin screw terminals, rated for 35A/690V with UL 94 V0 and ISO9001/CE certifications. Polycarbonate housing and ≤1mΩ contact resistance ensure reliability in wind power, rail transport, and H16B-compatible systems.
6 pins solution, with female inserts HSB-006-F
| Termination Method to Wire & Cable | Screw Terminal |
| Order No. | 09310062601 |
| Electrical Data Acc.to | DIN EN60664 EN61984 |
| Body Material | Polycarbonate |
| Rated Voltages | 400V/690V |
| Rated Current | 35A |
| Pins | 6 Pins |
| Rated impulse voltage | 6kV |
| Rated voltage acc. to UL/CSA | 600V |
| Pollution degree | 3 |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Applications | Wind power generation, Construction machinery, Rail transportation, Engineering Equipment, Renewable Energy, etc. |
| OEM | Provided |
| Material | Copper Alloy |
| Surface | Hard-gold Plated
Hard-silver Plated |
| Contact Resistance | ≤1mΩ |
| Wire Gauge | 1.5-6mm^2 |
| AWG | 10 |
| Tightening Torque | 1.2Nm |
H16B hoods and housing features:
