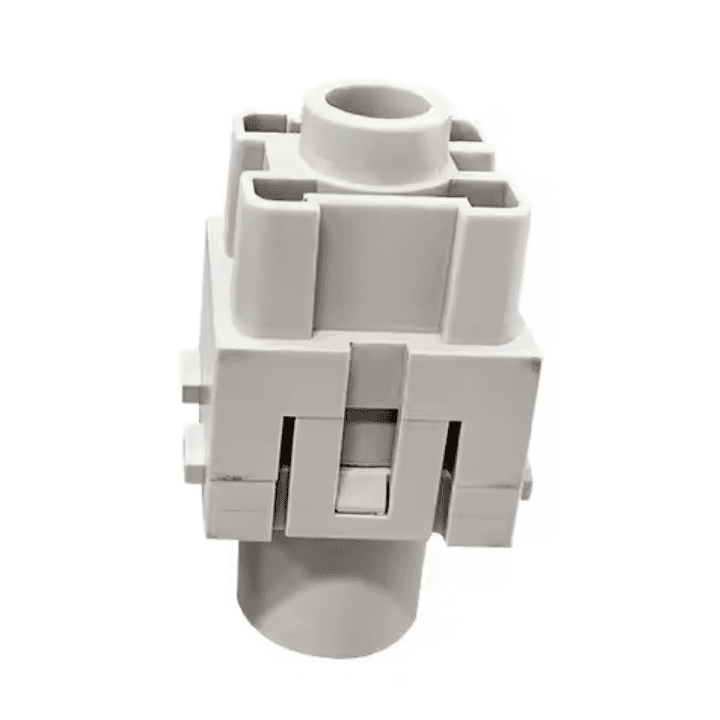

This H2MK-001.1-F single-pin heavy-duty module combines flexible axial screw termination (25-70mm²) with 6kV impulse protection. Ideal for renewable energy and industrial applications, it offers 500+ mating cycles and OEM customization.
Using with male inserts H2MK-001.1-M
| Termination Method to Wire & Cable | Axial Screw Terminal |
| Order No. | 09140012763, 09140012762 |
| Electrical Data Acc.to | DIN EN60664 EN61984 |
| Body Material | Polycarbonate |
| Rated Voltages | 1000V |
| Rated Current | 200A |
| Pins | 1 |
| Rated impulse voltage | 6kV |
| Rated voltage acc. to UL/CSA | 600V |
| Pollution degree | 3 |
| Limiting temperatures | -40℃…+125℃ |
| Insulation resistance | ≥1010Ω |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Certificate | ISO9001/CE |
| Applications | Wind power generation, Engineering Equipment, Rail transportation, Renewable Energy, Construction machinery, etc. |
| OEM | Provided |
| Material | Copper Alloy | |||
| Surface | Hard-silver Plated | |||
| Contact Resistance | 0.2mΩ | |||
| To IEC 60 228 Class 5 | ||||
| Axial Screw Terminal | ||||
| mm² | 25-70mm² | |||
| AWG | 2-0 | |||
| Hexagonal | SW 5 | |||
| Stripping length | 16mm | |||
| Tightening Torque | ||||
| mm² | 25 | 35 | 50 | 70 |
| Nm | 8 | 8 | 9 | 10 |
H2MK-001-M can be combined with a hinged frame and other modules.
