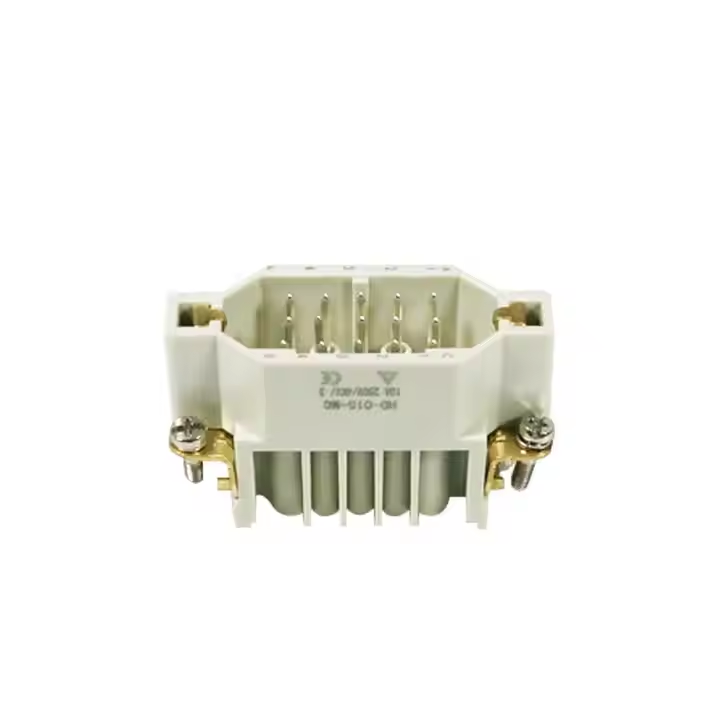

HD-015-MC 15pins male HDC Heavy Duty Multi-Pin Connector

15 pins solution, with female inserts HD-015-FC

Termination Method to Wire & Cable	Crimp Terminal
Order No.	09210153001
Body Material	Polycarbonate
Rated Voltages	250V
Rated Current	10A
Pins	15 Pins
Rated impulse voltage	4kV
Rated voltage acc. to UL/CSA	600V
Pollution degree	3
Limiting temperatures	-40℃…+125℃
Insulation resistance	≥≥1010Ω
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Certificate	ISO9001/CE
Applications	Wind power generation,  engineering machinery, Construction machinery, Renewable Energy, Energy Distribution, etc.
OEM	Provided

Contacts

Material	Copper Alloy
Surface	Hard-gold Plated Hard-silver Plated
Contact Resistance	≤3mΩ
Wire Gauge	0.14-2.5mm^2
AWG	26-14

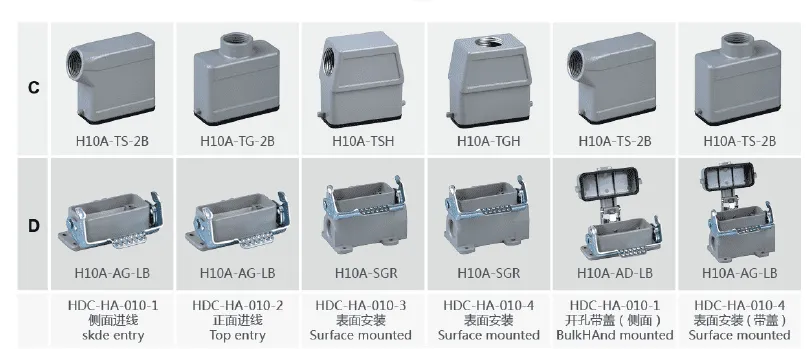

HD 15 pin heavy duty connector Suitable Shell: H10A Hoods and Housings

H10A Hoods and Housings Features:

1. All H10A types with 1 connecting lock.
2. Thread: Normally, it’s M20 and PG11
3. With or without a plastic cover.
